12/6 Heads High Speed Visual Placement Machine M6/M6D

Views:53     Author:Site Editor     Publish Time: 2016-11-03      Origin:Site

12/6 Heads High Speed Visual Placement Machine M6/M6D

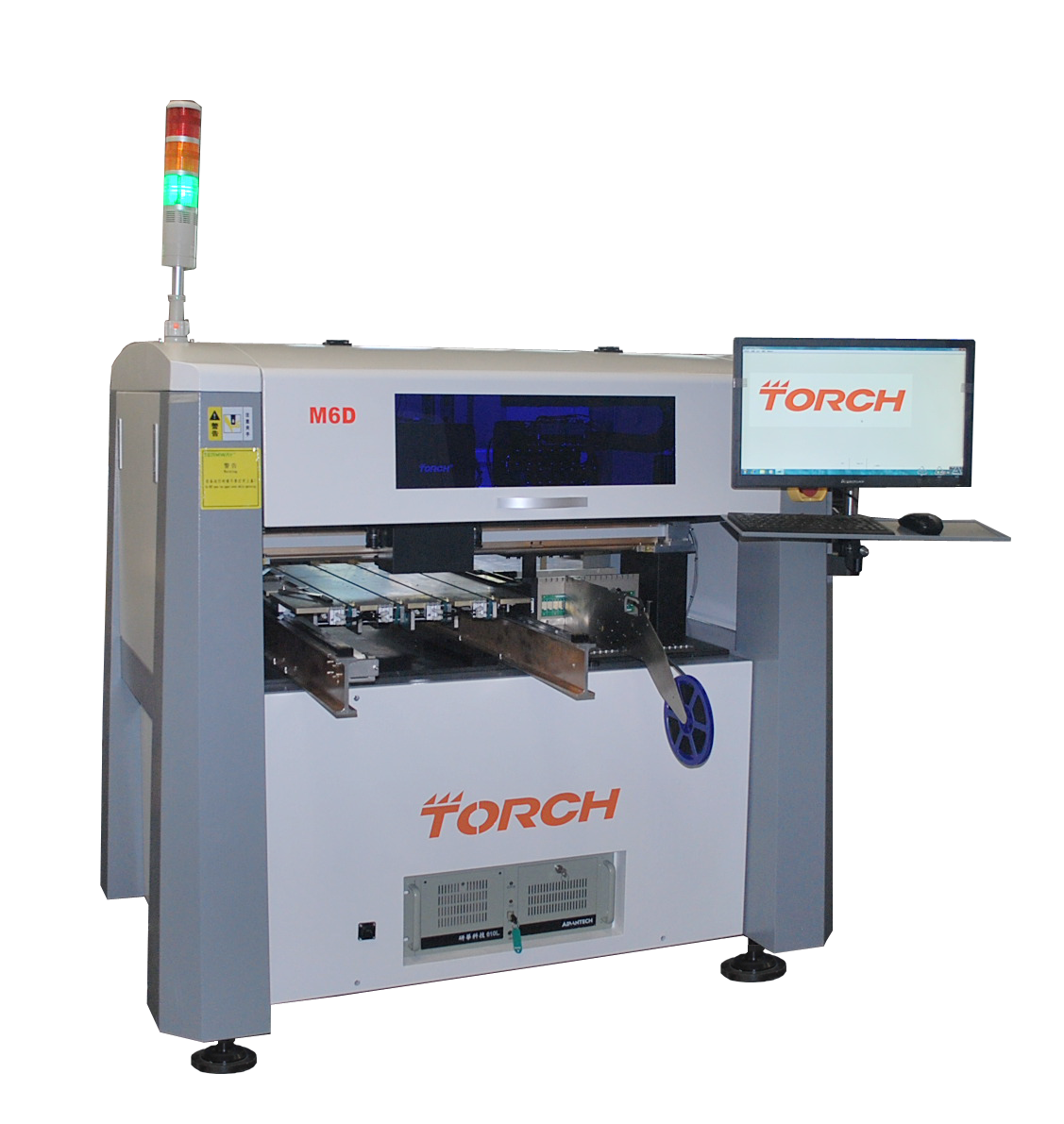

  12/6 Heads High Speed Visual Placement Machine M6/M6D:
m6d-1

  Beijing TORCH Co.,Ltd is professional in developping and manufacturing SMT Equipment with many years experience. The  small high speed visual placement machine M6(6 heads) and M6D(12 heads), which are developped recently, are able to  place 0402 R&C and LED chips, SOP, SOT, PLCC, QFP etc. M series placement machine has stable placement function, reasonable price and small size, which is the best choice for middle and small enterprise, research institution place power board, light, LED display, round light, buble, remote-controlling board, all kinds of household board etc.

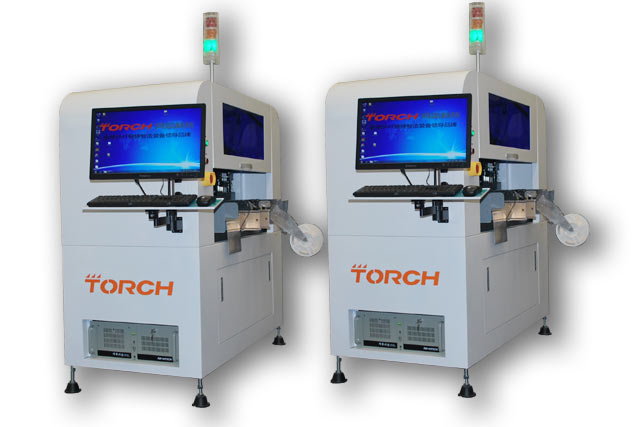

222
  Technical parameters--M6D/M6

  M6D Technical parameters
  1.A number of heads:12
  2.mounting area:600mm×450mm
  3.Z-axis maximum movement range:20mm
  4.Maximum speed (full visual):9000-11000CPH
  5.Maximum speed patch (nonvisual):12000-14000CPH
  6.XY axis resolution Accuracy:±0.01mm
  7.Repeat placement accuracy:±0.05mm
  8:Alignment manner:Visual position
  9.You can mount components:Above0402 resistance- capacitance
  and various pieces of LED chip, while meeting the diode
  Transistor SOP SOT PLCC QFP, BGA and other chips mount
  10.Programming method:Universal Automatic data / Import image study / keyboard input
  11.Number of feeders:MAX 38 kinds of GFTA-08 feeders(600mm×450mm)(Standard);
  MAX 66 kinds of GFTA-08 feeders(600mm×250mm)(option)
  MAX 38 kinds of GFTA-08 feedesr and two kinds ofIC tray(600mm×250mm)(option)
  12. operating system:WINDOWS XP、WIN7
  13.Compressed air:80psi(0.5Mpa,Gas flow≥120L/Min
  14.power:220V,50Hz,2KW
  15.weight:580kg
  16.Overall size:1550(L)×1300(W)×1300(H)

  M6 Technical parameters

  1.A number of heads:6
  2.mounting area:50mm×50mm-350×350mm(standard)
  50mm×50mm-600mm×600mm(option,Replace the transmission system can be quickly achieved)
  3.Z-axis maximum movement range:15mm
  4.Maximum speed (full visual):6500-7000CPH
  5.Maximum speed patch (nonvisual):9000-10000CPH
  6.XY axis resolution Accuracy:±0.01mm
  7.Repeat placement accuracy:±0.05mm
  8:Alignment manner:Visual position
  9.You can mount components:0402-SOP24
  10. Component types:Max 52 kinds of components
  11.Programming method:Universal Automatic data / Import image study / keyboard input
  12.Number of feeders:MAX 52 kinds of electric feeders(PCB:350mm×250mm)
  MAX 46 kinds of electric feeders(PCB:350mm×350mm)
  MAX 12 kinds of electric feedesr(PCB:600mm×600mm)
  13. operating system:WINDOWS XP、WIN7 32bit
  14.Compressed air:80psi(0.5Mpa,Gas flow≥90L/Min
  15.power:220V,50Hz,1.5KW
  16.weight:350kg
  17.Overall size:1400(L)×850(W)×1350(H)
