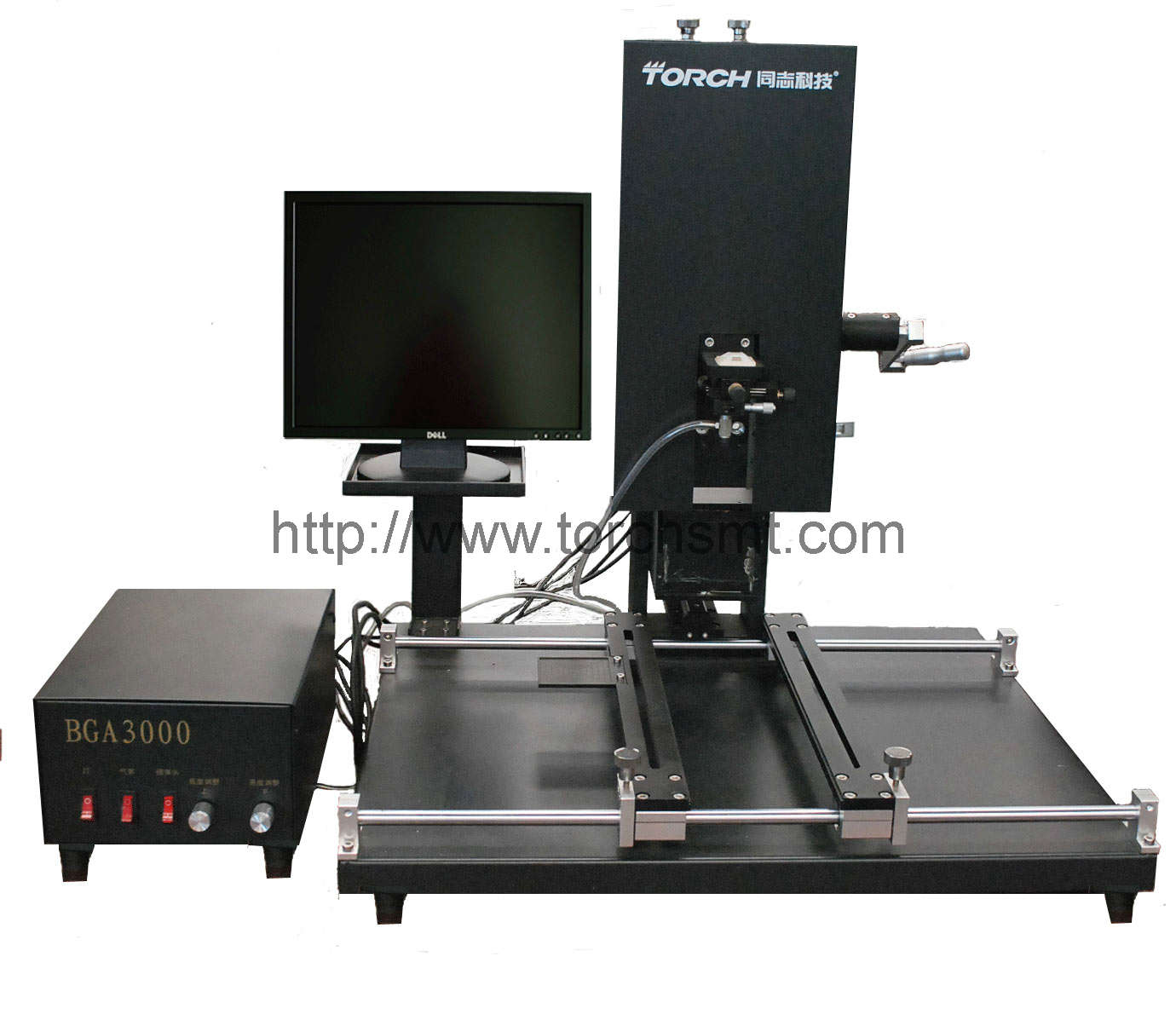

 Exact maintenance System BGA3000

BGA3000 exactitude BGA-SMT orientation system use optics system to achieve surface component pin and PCB surface pad imaging on the CCD at the same time, and the process could be observed through the microscope. X and Y axes will be discretionally adjusted by high precision guide way and table. Apply double lamp-house luminance to easily adjust brightness and lighting orientation.It is the same to high precision component, such as QFP and PLCC.

 　　【Introduction】：

 　　Technical Parameter：
 　　*Max mounting BGA size： ≤20mm x20mm
 　　*Min mounting BGA size： 3.5×3.5mm
 　　*Mounting Accuracy： ±10um
 　　* PCB size can be suitable： 400×350mm
 　　Max Picking strength： 2.0N
 　　Picture output sign type： PAL
 　　Machine size： 400 * 550 * 430mm
 　　Net weight： 15Kg
 　　Power supply： 220v，50Hz
 　　Power： 200w
 　　Light supply：Use stable LED light, which can help definite picture position accurately.
 　　Light color: soft LED light, PCB pad in red LED light (optional)
 　　Air supply: Industrial Diaphragm pump, large air capacity to improve Max BGA mount.

 　　【Features】：


 　　High precision linear guiderail and turn table can achieve 2μm high resolution deformation adjustment in the range of 13mm and 2〃 high resolution regulate exactly in the range of 360 ℃ to ensure high accuracy in the whole repair process.
 　　Double color light splitting technology has stable light, which is suitable for accurate position, it takes red LED soft light illuminate on chips while green light on PCB pad. The intensity of the ray could be controlled to strengthen the image contrast.
 　　Advanced optical system ensures BGA component PIN foot and PCB pad image on CCD at the same time. Single wavelength prism group controls the polarization ray on PCB board effectively and improve the definition of image.
 　　Professional nozzle has a reliable and stable suction to pick up the chips cooperating with industrial Diaphragm Pumps.
 　　High-defi CCD outputs PAL and VGA signals to achieve the contact to industrial LCD and PC monitor.

 　　Main parts：:
 　　1, suction cup,
 　　2, X-direction micro-adjust Handle
 　　3. Y-direction micro-adjust Handle ,
 　　4. θ-angle micro-adjust Handle,
 　　5. Air pipe,
 　　6. Diaphragm Pump,
 　　7. Light supply,
 　　8, Fasten Handle
 　　9, PCB working table,
 　　10, Drawer-type Handle,
 　　11, Control Case,
 　　12 Monitor.
