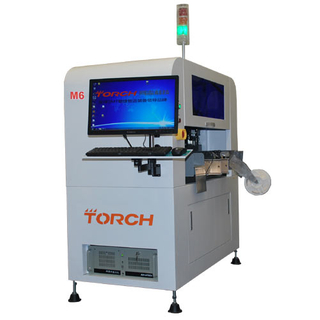

M6 with Unique design, can easily expand 600*600mm super width PCB Board, don’t need increase the user cost to purchase large model machine. M6, only one set machine can achieve this requirement.

　　1.Specially assembling on standard mounter platform, using the most flexible solution to challenge automation and reduce the cost to the limit.
　　2.We can provide complete special assemble automation solution,such as shielding cover,plastic film, lampshade,lead soldering piece,key on the cellphone, label and son on. The machine is widely used in the industry of cellphone,car,light,military etc.

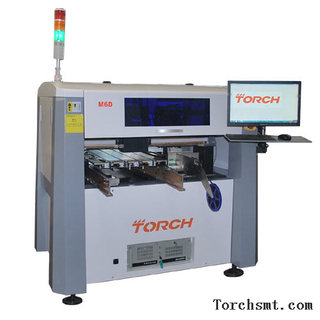

　　M6D Features：
　　1、High speed：Typical speed can up to;12000-14000cph. Theoretical Max mount speed can up to:9000-11000CPH。
　　2.Mounter head quantity：12

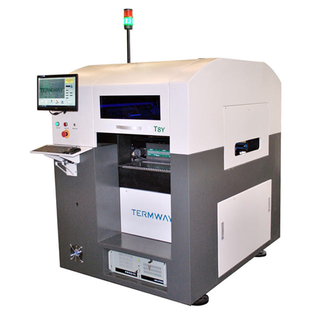

Automatic multi-function high-precision eight-speed placement machine T8

　　1.Can mount up to 114 kinds of components at most.
　　2. Standard configuration can mount SMD 0201 and above size.
　　3.The max size of QFP :48*48mm.
　　4. Can mount BGA ,CSP and QFP with pitch no less than 0.4 mm.
　　5.Machine can be configured with first component electronic detection function, to ensure all the places components are correct.

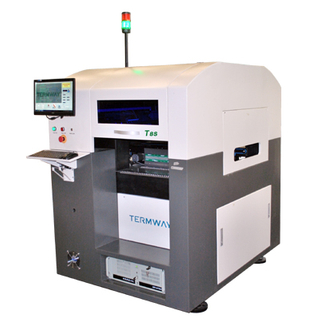

T8E Introduction :
1.Can mount up to 114 kinds of components at most.
2. Standard configuration can mount SMD 0201 and above size.
3.The max size of QFP :48*48mm.
4. Can mount BGA ,CSP and QFP with pitch no less than 0.5mm.
5.Machine can be configured with first component electronic detection function, to ensure all the places components are correct.

　　T8 is one high-precision mounting machine that can mount 0201 and can mount 5 kinds of IC trays at one time.
