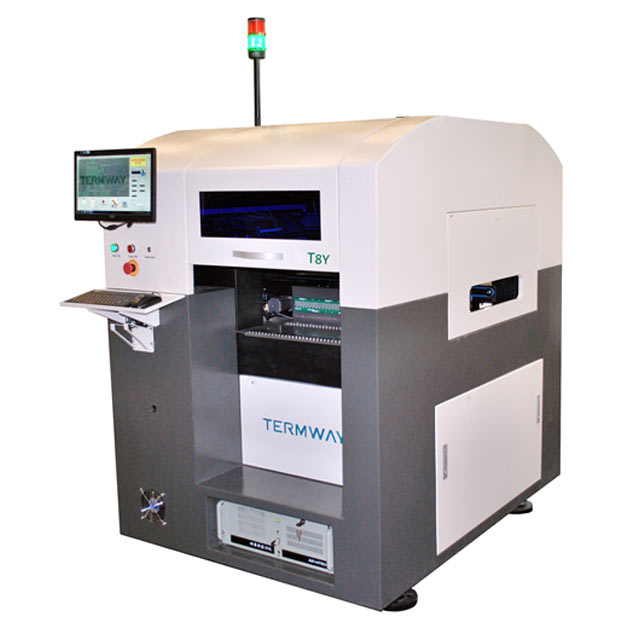

Special component mounter Model:T8Y

  1.Specially assembling on standard mounter platform, using the most flexible solution to challenge automation and reduce the cost to the limit.
  2.We can provide complete special assemble automation solution,such as shielding cover,plastic film, lampshade,lead soldering piece,key on the cellphone, label and son on. The machine is widely used in the industry of cellphone,car,light,military etc.

Quantity:
T8Y Introduction:

1.Specially assembling on standard mounter platform, using the most flexible solution to challenge automation and reduce the cost to the limit.
2.We can provide complete special assemble automation solution,such as shielding cover,plastic film, lampshade,lead soldering piece,key on the cellphone, label and son on. The machine is widely used in the industry of cellphone,car,light,military etc.
3.Adapt to rapidly change in production requirement.By rapidly product switching, the machine can meet the production demands of more kinds of products.
4.Support many kinds of feeding ways and satisfy mixed mounting requirement.

T8Y Function Introduction:

1.The basic mounting platform is high precision mounter T8S,inherited the merits of the equipment, can mount more stable and accurate with high speed.
2 3
4 5

2.Especially applied to special component placement.
6 Soldering lug

7Lens hood 8
Lampshade
9Electrode 10Special component 1
11Special component 2 12Special component 3 13Mobile accessories 1 14Lens hood of mobile accessories
15Shielding stent of mobile accessories 16Film 1 of mobile accessories 17Film 2of mobile accessorie 18Plug

3.Kinds of feeding system with standard configuration. Like,electronic feeder, electronic smart feeder, vibrating feeder,automatic IC skip, vibrating tray and customized feeding device, meeting all kinds of special component placement.
19

20


4. The machine can mount 28 kinds of different special component or IC by equipped with automatic IC skip and can non-stop feeding, meeting automation production requirement and improve production efficiency to the most limit.
21


5. Regarding to different special component, if the present feeding system can not meet the requirement, special feeding device can be customized and meet automation production requirement.
22 23

6. Customize certain image collecting system according to different special component, choosing proper light resource and camera lens to achieve the most stable,efficient image collecting, improving the mounting speed as well as stability.
24

7. Customize certain image distinguishing and dealing methods according to different special components, achieving the most stable placement.

25 26

Option:
1.GF electronic feeder(8MM,12MM,16MM,24MM,32MM,44MM)
2.Nozzle (6 kinds of nozzles. Special nozzles can be customized)
3.QS48 component (Can place IC of 48*48mm)
4.Bulk tray(Bulk tray of different size of components)
5.IC tray
6.Short feeder
7.Vibrating feeder
8.IC tray feeding skip(28 flours)
9.Customized feeder
10.Off-line program software

Parameters:
Head Qty
4 groups of mounting heads



The max mounting size
400×300mm



The max moving range
900×460mm



The max moving range of X axis
30mm



Typical speed
6000-8000cph



Theoretical speed
12000 cph



Moving system
X,Y axis use Japanese Panasonic servo motor driving+ high precise industrial lead screw rail+Grating ruler position(X axis can be optional configure imported linear motor)
X.Y axis
precision

±0.001mm



Repeated accuracy


±0.015mm



Position method
High speed visual position



Component available
Resistance and capacity above 0201;IC below 38mm; all kinds of special components(01005 orcomponent above 38mm and other special components need option



Program way
Automatic data import/Video learning/Keyboard input/Off-line programming function



Belt feeder
Option: 8mm12mm16mm24mm32mm44mm electronic smart feeder



Feeder qty
GF feedercan place 72 pieces of 8MM GFTA-08S feeders


DF feedercan place 144 kinds of  8MM components



IC tray no.
IC skip is optional can place 28 IC tray at most



Operation system
WINDOWS XP/ WIN7



Compressed air
80psi0.5Mpa),Air fluent 80L/M



Power
380v50Hz5kw



Weight
1250kg



Dimension
1200×1590×1445mm
