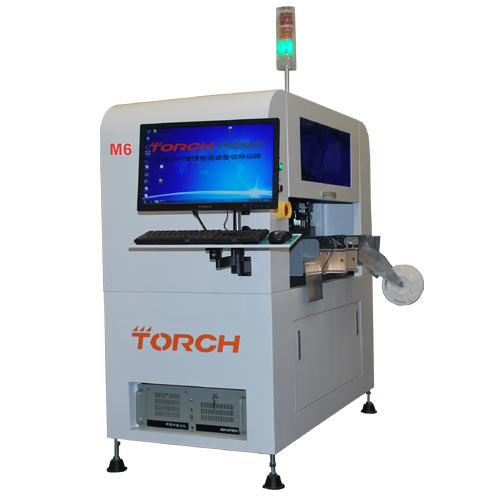

Six-Head Small High Speed Visual Pick & Place Machine M6

M6 with Unique design, can easily expand 600*600mm super width PCB Board, don’t need increase the user cost to purchase large model machine. M6, only one set machine can achieve this requirement.

  • TORCH
  • M6

  M6 Introduction:
  1. What’s the M6?  M6 is Mounter with 6 Head;
  2. M6 is Beijing Torch independently launched Visual Pick and Place Machine.  Model M6
  3. M6 is Epoch-Making product of Small High Speed Pick and Place Machine field.
  4. M6 can mount Minimum 0402 component,  mount Maximum SOP24 IC.
  5. M6 can optional belt type electronic feeder and bar type vibration feeder.
  6. M6 can mount Maximum 52kinds of component.(Only 8mm)
  7. M6 with Unique design, can easily expand 600*600mm super width PCB Board, don’t need increase the user cost to purchase large model machine.   M6, only one set machine can achieve this requirement.
  8. M6 is specially reduce cost for you, 13000CPH high mounting speed, the first—class spare parts ensure high quality, reduce the maintenance cost, improve your mercantile rate of reture!

  M6 Function Introduction:
  1. Using natural granite marble gantry, make sure no kinematic accuracy change after use the pick and place more than 5 years.


  Natural granite marble gantry,
  2. The electromagnetism heads obtain a patent, can make sure the smallest and lightest high speed mouning.

11.jpg 12.jpg

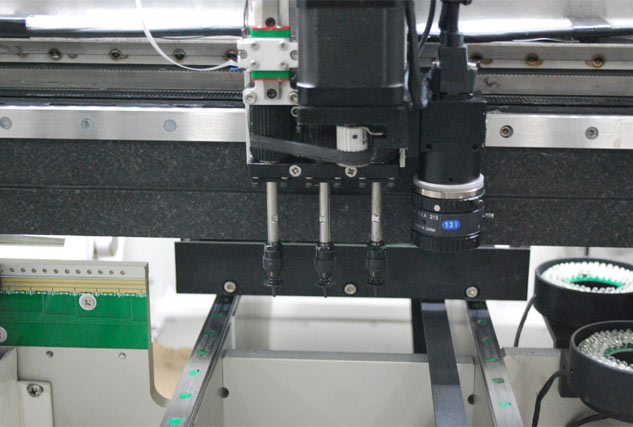

  The electromagnetism heads
  3. Top-level leadership visual system: Adopt Germany Termway proprietary super bright light source. Make sure the high speed and high definition scanthing to achieve the high accuracy placement.
  4. Deploy electric feeder, compare with the pneumatic feeder, can reduce the vibrate, to make sure the high accuracy.

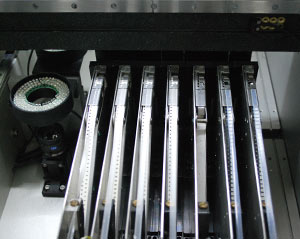

 CF models feeder

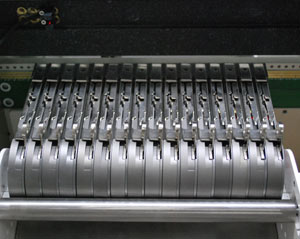

 GF models feeder

  5. Adopt Germany Termway non-stop scanning photos technology patent, makes high-speed placement come true . Maximum vision mounting speed up to 9000CPH, without vision , the placement speed up to 13000-15000CPH.
  6.Intelligent board transmission system, option conveyor system, complete automated intelligent production.(optional)
  The factory of Torch pass the quality management system and environmental management system, and achieved international authentication of ISO9001:2008 and ISO14001:2008 and the CE certification.

  M6 Technical parameters
  1. Mounting Head: six groups heads
  2. Mounting size:50mm×50mm~350mm×350mm(Standard configuration)
                   50mm×50mm~600mm×600mm(optional,change transport system will make it true rapidly. )
  3. The max moving range of Z axis:15mm
  4. Mounting speed with visual:8000-9000 cph
  5. Mounting speed without visual:13000-15000 cph
  6. Definition accuracy of XY axis:±0.01mm
  7. Repeat mounting accuracy:±0.05mm
  8. Position method: visual position
  9. Component available:the minimum 0402—sop24
  10.Program method:Universal data auto/Import image learning/Keyboard          input
  11. Component kinds:MAX 52 kinds of components
  12. Quantity of Feeders : 1.MAX52 kinds of electronic feeders(PCB:350*250mm);
                            2.MAX46 kinds of electronic feeder (PCB:350*350mm);
                            3.MAX12 kinds of electronic feeder(PCB:600*600mm);
  13. Operation system:WINDOWS XP/WIN7 32bit
  14. Compressed air:80psi(0.5Mpa,gas flow≥90L/M)
  15. Power:220v,50Hz,1.5kw
  16. Weight:350kg
  17. Dimension:1400(L)×850(W)×1350(H)
