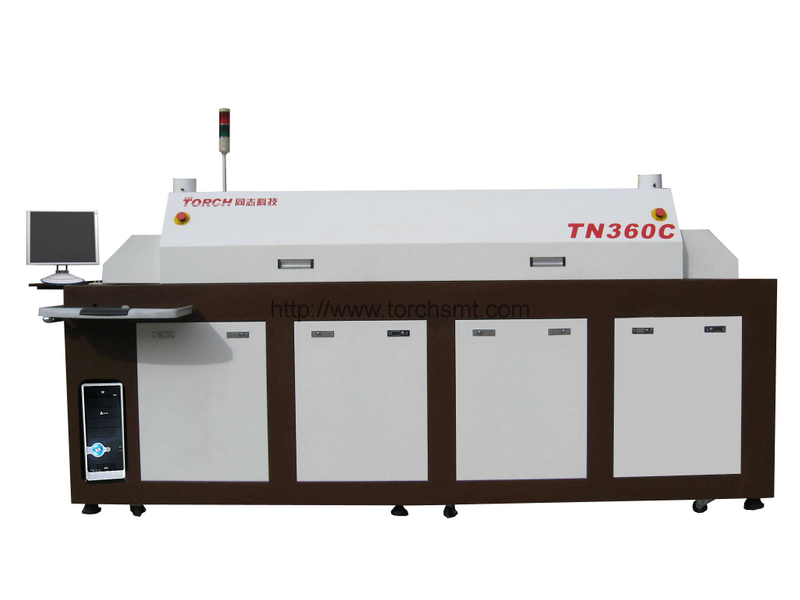

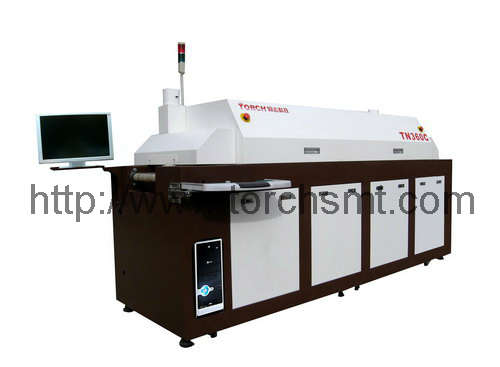

Full hot air lead-free reflow Oven with six heating-zones TN360C

Protection system: TN360C uses SSR solid relay (450V) that has large power and pressure prevention to non-contact output, safe and reliable. It can monitor the change of temperature and heat number in furnace chamber with the functions fuzzy control and data collection. Then control the heating component with the least pulse and response quickly. TO keeps the Temperature control accuracy, but the equipment can not be damage for the high current and high voltage. And each room fits a safety pipe which is high temperature and high pressure resistant function so that the whole system can run safely and calmly.

 The selling point of TN series :

 1. Chanel reflow oven with  the thickness of 150mm

 2. Use 24 chanel modular design reflow oven hardware temperature control system .

 3. The only industry can achieve custom fuinction reflow oven software system .

 4.The only industry have remote control reflow oven software system

 5.Equipped with top brand HP OR Lenovo computer,such as optional industy computer according to customer requirment .

 Product instruction of TN360C：


•    Heating system: TN360C adopts high effective and energy-saving nickel-chromium heating tube. Advanced technology and Long life. And TORCH self-developed hot-air circling system features warm up quickly, which can make PCB component be heated evenly.

•    Protection system: TN360C uses SSR solid relay (450V) that has large power and pressure prevention to non-contact output, safe and reliable. It can monitor the change of temperature and heat number in furnace chamber with the functions fuzzy control and data collection. Then control the heating component with the least pulse and response quickly. TO keeps the Temperature control accuracy, but the equipment can not be damage for the high current and high voltage. And each room fits a safety pipe which is high temperature and high pressure resistant function so that the whole system can run safely and calmly.

•    Accuracy control by IPC and PID intelligent arithmetic. According to the PID intelligent calculation, heat output can be controlled accurately and response to the change of outside to balance the temperature. The whole system has a modularized design. It is convenient to maintenance and disassembles

•    Outer shell and furnace body of TN360C can be opened wholly and automatically. It is convenient to clean and maintain it.

 Main features for TN360C:
 1> Intuitional welding control: TN360C adopts advanced furnace temperature collection system. It can test temperature curve and temperature in furnace hearth. The temperature curve can be recorded or printed at the same time.
 2> Smooth and safe transmission system: Drive system adopts a high quality conversion motor and conversion system .It also has a closed-loop governor and Turbine speed reducing box of 1:100 to keep running smoothly .Speed:01600mm/min.
 3> Stable and safe electric control system: Delay switch protection. After power off, temperature drops evenly so that can prevent damage to transmission component and heater.

 4> Upper and lower heating zones are separately controlled. The circulation speed can also adjust separately. It is suitable for welding different PCB plates and components.





Model	TN360C
Heating part parameter
Heating zone	6 heating zones(6 upper,6 cover)+1 cooling zone
Heating method	Full forced Hot air heating
Heating area length	1800mm
Cooling zone	1 zone,  (1up/1 below)
Cooling method	transverse flow vortex centrifuge blower
Built-in automatic relay heating system	To prevent over-pressure damage controller or motor when start up and to prevent component damage when welding.
Transmission parameter
PCB Board width	≤ 300mm
PCB conveyor Height	900±20mm
conveyor direction	L→R
Conveyor Material	Stainless steel
Chain-driven Mesh belt conveyor	Net belt and chain-driven transmission
Mesh belt width	300mm
Conveyor speed	0-1600mm/min adjustable
Control part parameter
Power supply	380V (3 ph, 4 wires) 50/60Hz
Max Power	34kw
Normal working power	19KW
Warm-up time	≤ 30min
Control system	PLC+ Torch module temp control system+ IPC
Range of temperature control	Room Temperature-360 ℃
Temperature control	Advanced Intelligent micro computer PID temperature control automatically in each zone + SSR non-contact output
Precision of temperature control	± 2℃
Temperature distributing error	± 2℃
Machine Body Parameter
Net Weight	680 kg
Dimension（ L×W×H ）(mm)	(2900×900×1300mm)
