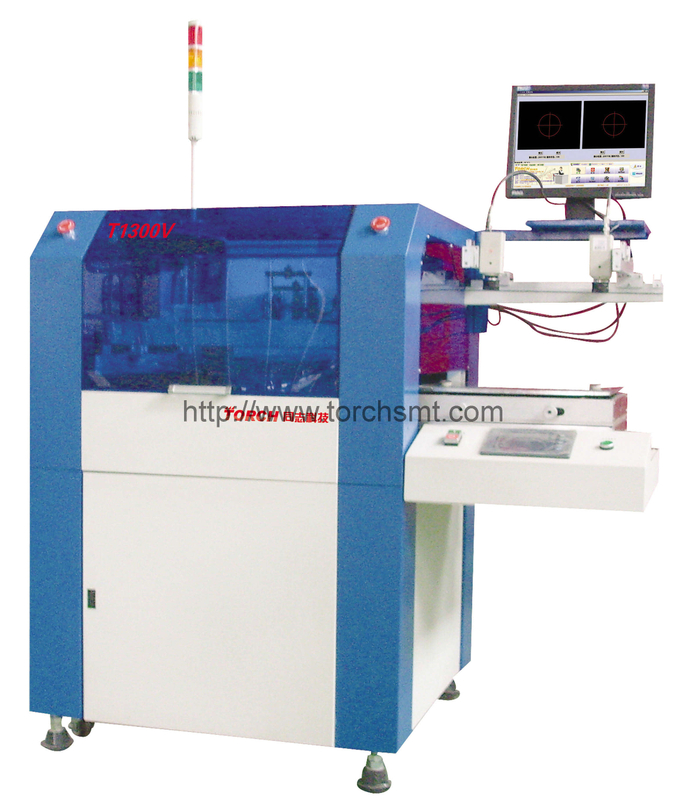

High precision se-mi automatic Printer T1300V

Quantity:
Newly launched high precision semi-automatic SMT solder paste printing machine T1300V is for mass production. PCB plate is fixed on the flexible work platform for easy to print single-side and double-sides PCB boards. The adjustments of the PCB plate position and the movement of the work platform are driven by the linear square guide-tracks, cooperated together with a double-frequency motor to ensure exact moving and high accuracy. It is now the optimal choice to take the place of full automatic printing machine and decrease the cost of the production maximally.

High precision se-mi automatic Printer T1300V

Newly launched high precision semi-automatic SMT solder paste printing machine T1300V is for mass production.

PCB plate is fixed on the flexible work platform for easy to print single-side and double-sides PCB boards. The adjustments of the PCB plate position and the movement of the work platform are driven by the linear square guide-tracks, cooperated together with a double-frequency motor to ensure exact moving and high accuracy. It is now the optimal choice to take the place of full automatic printing machine and decrease the cost of the production maximally.



Features
1.  Four-point steel mesh location makes printing repeated accuracy higher;
2.  Four feed screw can lift and fall synchronously so that the distance between PCB and steel mesh can be adjusted more exactly and the balance between front and back is higher;
3.  Moveable steel mesh frame. It meets different size of steel mesh;
4.  Floating scraper, it can balance the right and left pressure automatically to increase the service life of scraper and steel mesh and to advance the reliability of printing;
5.  Flexible magnetic absorption thimble for printing double-size of PCB;

6.  Platform height ( distance of PCB and steel mesh) and angle is easy to adjust and observe directly.
7.  X-axis, Y-axis on platform is adjusted by stop motor, comparing with software set to adjust different step distance for high precision micro-adjust require.

7.  The distance between PCB and steel mesh can be adjusted accurately. The hand wheel adjustment is set in the left front of machine so that the machine can be adjusted easily;
8.  PCB moving location platform. The contra-position operation can be finished out of the machine easily;
9.  PCB location platform can lift and fall at four-point synchronously. PCB can connect with steel mesh tight.
10. The scraper working is driven with lift and right synchronously. It makes the process of scraping printing smoother.
11. Stainless steel scraper;
12. Optional moveable vacuum inspiration disk. It is suitable for the printing of FPC;
13. Large and color PLC touch screen .It is convenient to operate and demonstrate
14. PLC touch screen control: Man-machine conversation interface adopts large and color touch screen .It makes    the interface visible and the operation easy.
15. Use thimble to locate and support PCB. It is convenient to print double-size of PCB.
16. PCB location platform adopts step-by-step motor drive. It is set image contraposition system so that the contraposition of PCB can be achieved easily.
17. Optional moveable vacuum inspiration disk. It is suitable for the printing of FPC.



Technical parameter



Printable Area

350*400mm

Printable PCB Thick

0.4-6mm

Frame Size For Stencil ( L*W)

650*600mm

Printing Platform Length

450mm

Printing Platform Width

450mm

Central Vertical Table Lift

0-10mm

Table Adjustment Range

X-axis 10mm
Y-axis 10mm

Rotation(Theta)

15 Degree

Squeegee Speed Steppless Adjustable
For Print Operation

0-80mm/s

Squeegee Pressure Force

0-20kg

Power Consumption

0.5kW

Air source

4-6bar

Weight

220kg

Machine Size

1250*865*1530mm
