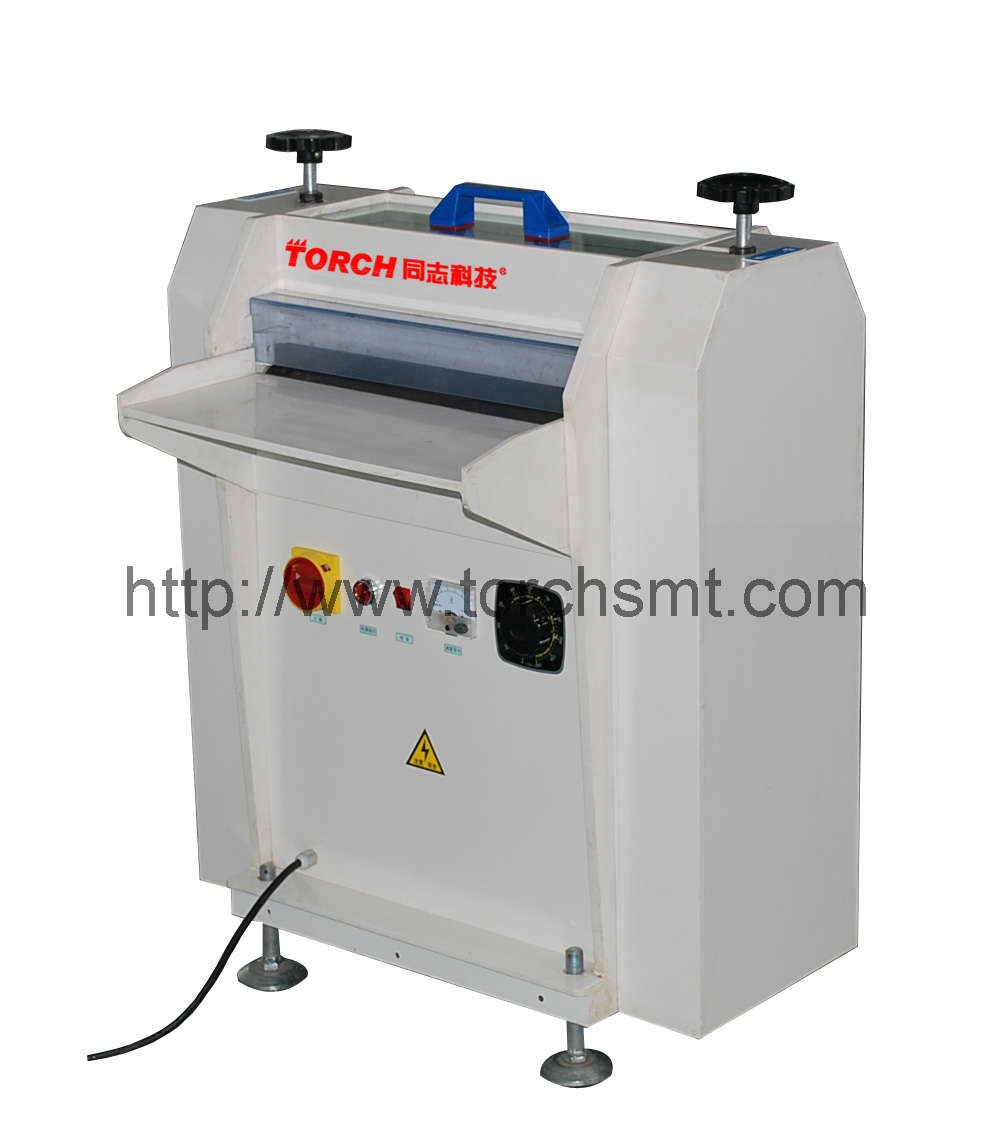

The machine is used for taking off oil and oxide layer; mainly for PCB board polishing treatment, also for stainless steel, aluminium plate and cooper plate. The process includes board input, brushing, water washing, board output.
Technical Data Sheet

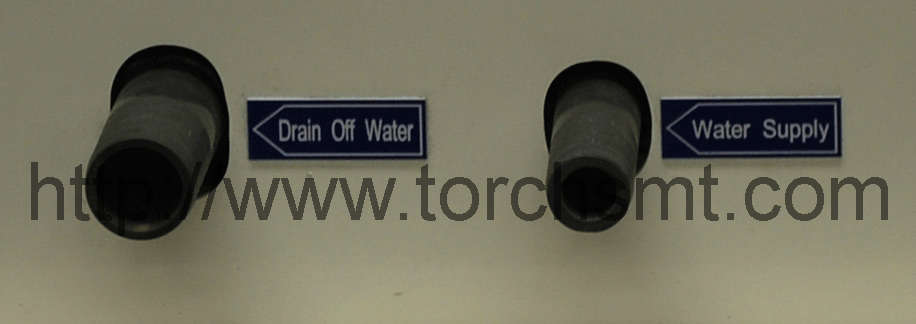

【Preview】： The machine is used for taking off oil and oxide layer; mainly for PCB board polishing treatment, also for stainless steel, aluminium plate and cooper plate. The process includes board input, brushing, water washing, board output. 【Main technical parameter】： 1、Effective width：400 mm 2、Working height：850mm±25mm 3、Transmission speed：0.5～5m/min（adjustable） 4、Manufacturing size： Length：>140㎜，width：<400㎜，thickness：0.5-3.2㎜ 5、Roller Brushes specification：Φ80×415㎜（diameter×length）grid size：320目 6、Roller Brushes rotating speed：1826r/min 7、Roller Brushes motor：0.75KW 8、Transmission motor：150W 9、Power：0.9KW 10、Water flow capacity：15-20L/min 11、Dimension：L×W×H＝550×740×900mm
A professional electronic assembly equipment and service provider, is a high-tech enterprise engaged in the research and development, production, and sales of semiconductor packaging machines, SMT production equipment and consumables. Like vacuum reflow ovens, die bonder etc. Currently, it has multiple subsidiary companies and provides you with high-quality products at preferential prices.
