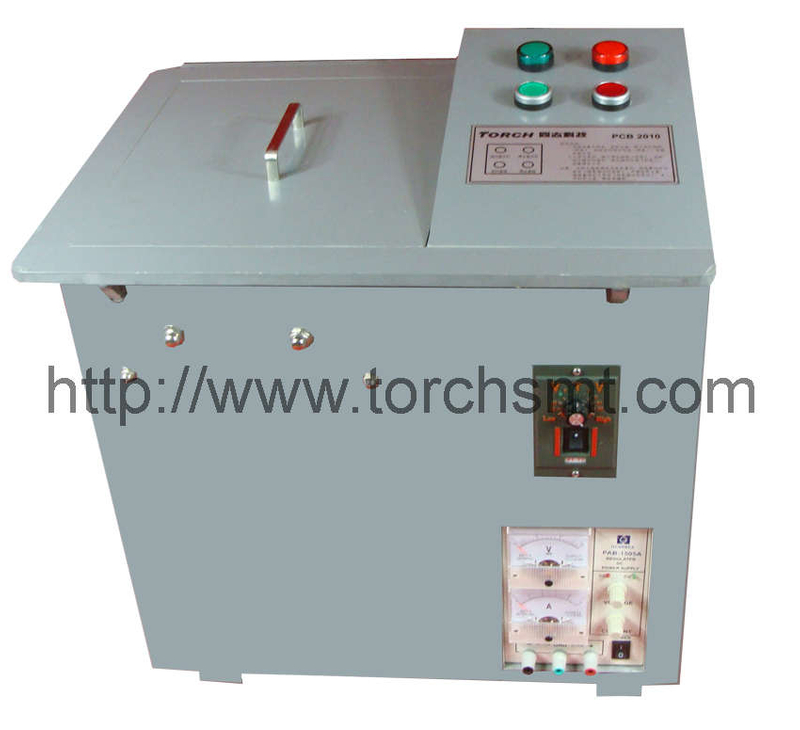

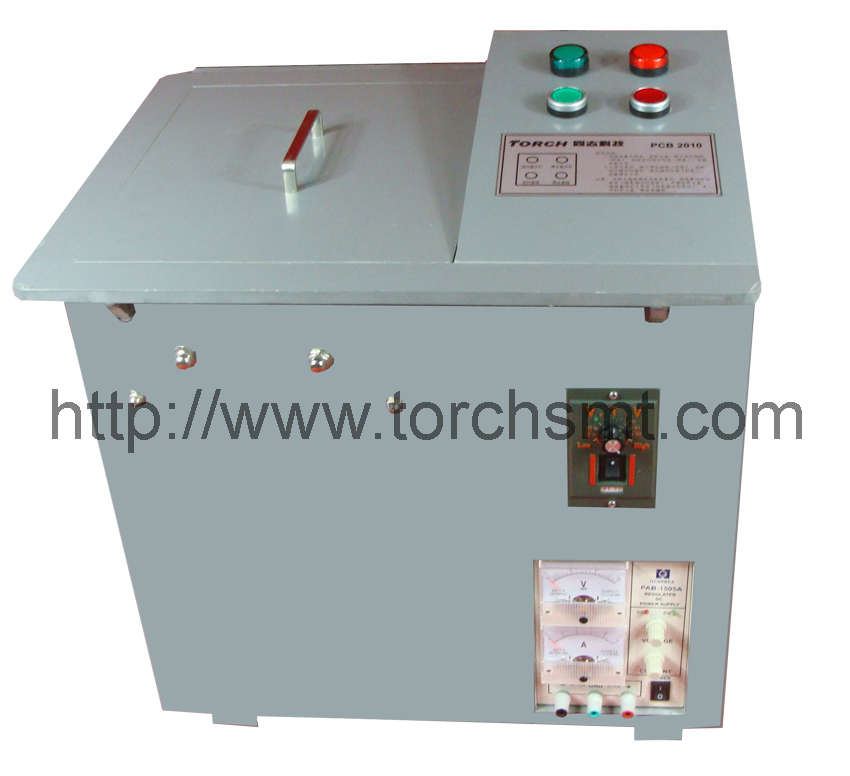

PCB Hole Metalizing Plating System PCB2010 (Copperize)

Quantity:
Plating solution micro-circulation system: Built-in two sets of porous foam tubes and quiet air pump to make plating solution micro-circulation to improve the quality of plating;

 Introduction】:
 1. Plating solution micro-circulation system: Built-in two sets of porous foam tubes and quiet air pump to make plating solution micro-circulation to improve the quality of plating;
 2. Plating PCB moves towards and backwards regularly: Control electroplating speed can be adjusted.
 3. Integrated structure
 4. sealed design ensure no plating solution pollution, plating quality is good.
 5. Power supply: adjustable DC stable power supply and pressure can provide 0-15V, 0-5A of constant voltage and constant current.






         Technical Parameter】:
         1. Waving frequency: 0-250 T / min
         2. Waving range: 0-7mm
         3. Max size of PCB: 200*200mm
         4. Working speed: 20-50mm/S
         5. Max power: 80W
         6. Working voltage: AC210-240V
         7. Dimension: L*W*H: 470*380*500mm
