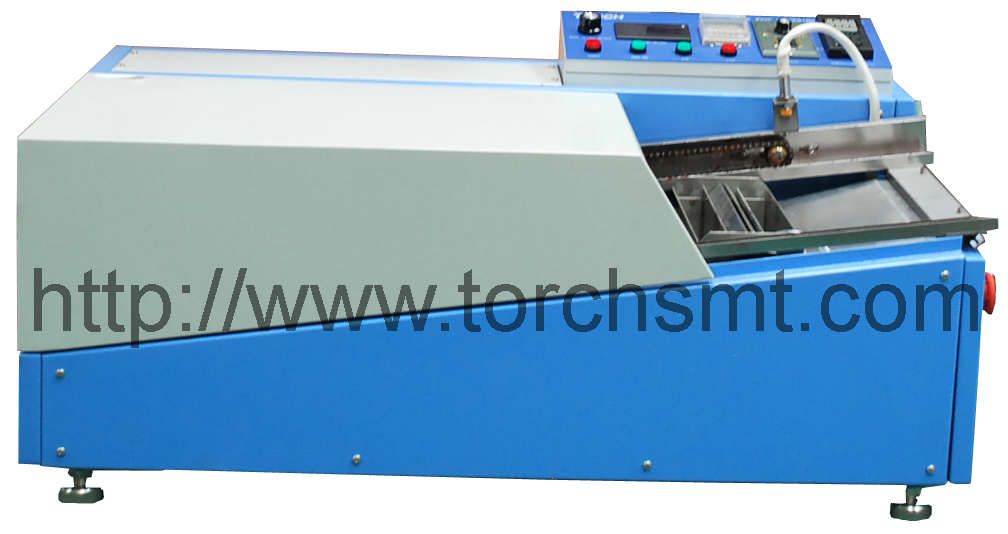

Desk wave soldering machine TB680

Quantity:
Desk wave soldering machine TB680 has been developed by Torch, It is the first equipment in small type wave soldering field. TB680 is suitable for research center, war industry, middle- and small-sized corporation, small private corporation and other electronic production companies. It is a desk-type, taking up small room, with multi-functions, energy-saving and high efficiency. The operation is easy and especially suitable for small and middle batch production.



 Summary

 Desk wave soldering machine TB680 has been developed by Torch, It is the first equipment in small type wave soldering field. TB680 is suitable for research center, war industry, middle- and small-sized corporation, small private corporation and other electronic production companies. It is a desk-type, taking up small room, with multi-functions, energy-saving and high efficiency. The operation is easy and especially suitable for small and middle batch production.



  Main technology parameters

 max power:                          3KW

 pot capacity:                         37Kg tin

 max PCB size:                        200X270mm (max)

 temperature range:                200-300℃  LED display

 preheating temperature:                    70-90℃

 height range of wave crest:         5-12mm

 Melting time:                       80min

 flux spray :                       froth

 power supply:                   220V±1%V  AC  single phase 50Hz

 (please connect power to the ground)

 transmission speed:                    0.5-3m/min

 dimension :                          850X600X330mm

 net weight:                              48Kg



  Function



 There are 6 parts: flux, preheating, soldering, electrical controlling, exhaust unit and convection unit.


  1.    Flux

 Flux parts are made of air pump, air tube, pin valve, filter, froth tube and flux box.



 Flux

 There is flux belt on the froth tube, PCB whose side has chips is on the top and touch flux, the side will has flux film.


  1.    preheating

 It is made by melt board with resistor to provide heat for PCB.


  1.    soldering

 It is made by tin pot, heating board, wave pump and tin.





           1 tin pot



           2 clapboard



           3 nozzle



           4 regulator



           5 wave pump



           6 channel






 Soldering

 Figure 3: The solder will be divided into upper and lower levels by clapboard, the lower for the high-pressure layer, the upper layer for the low-pressure layer, liquid solder will be into high pressure layer driven by wave pump, the solder in the high pressure layer rotate and then pass regulator, it will overflow from the nozzle, the wave crest form and then fall into low pressure layer because of gravity

 4 electrical controlling

 With modular structure, transmission speed, solder temperature, preheating time and others can be adjusted and controlled. Working principle is shown in Figure 4.



 Figure 4 electrical controlling




  1.    exhaust unit

 It is made of cover, air fan, air cover and air tube. All exhaust generated in soldering will be eliminated.


  1.    convection unit

 It is made of chain, rail, drive and pallet. PCB will be sent in flux unit, preheating unit and soldering unit by convection unit.
