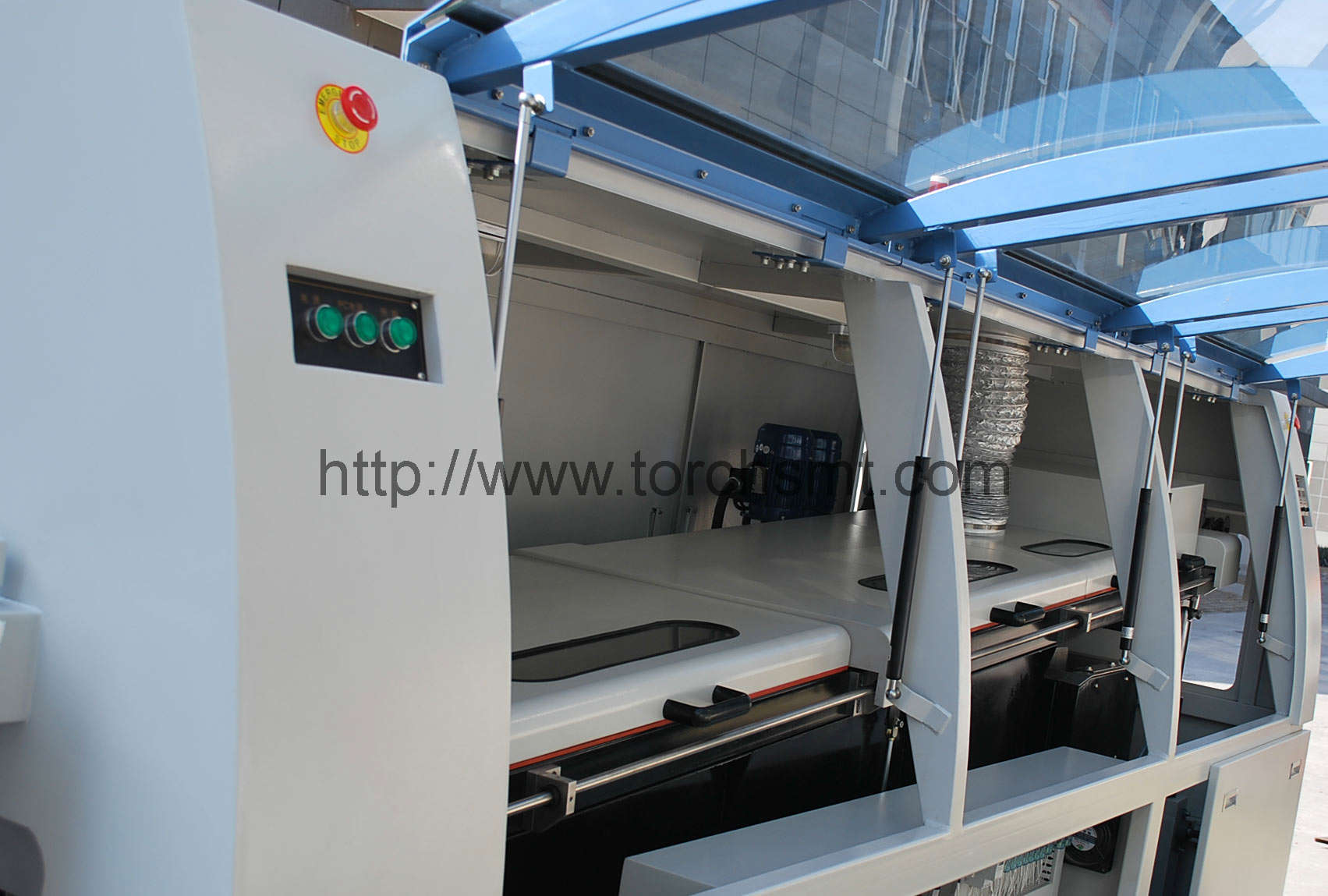

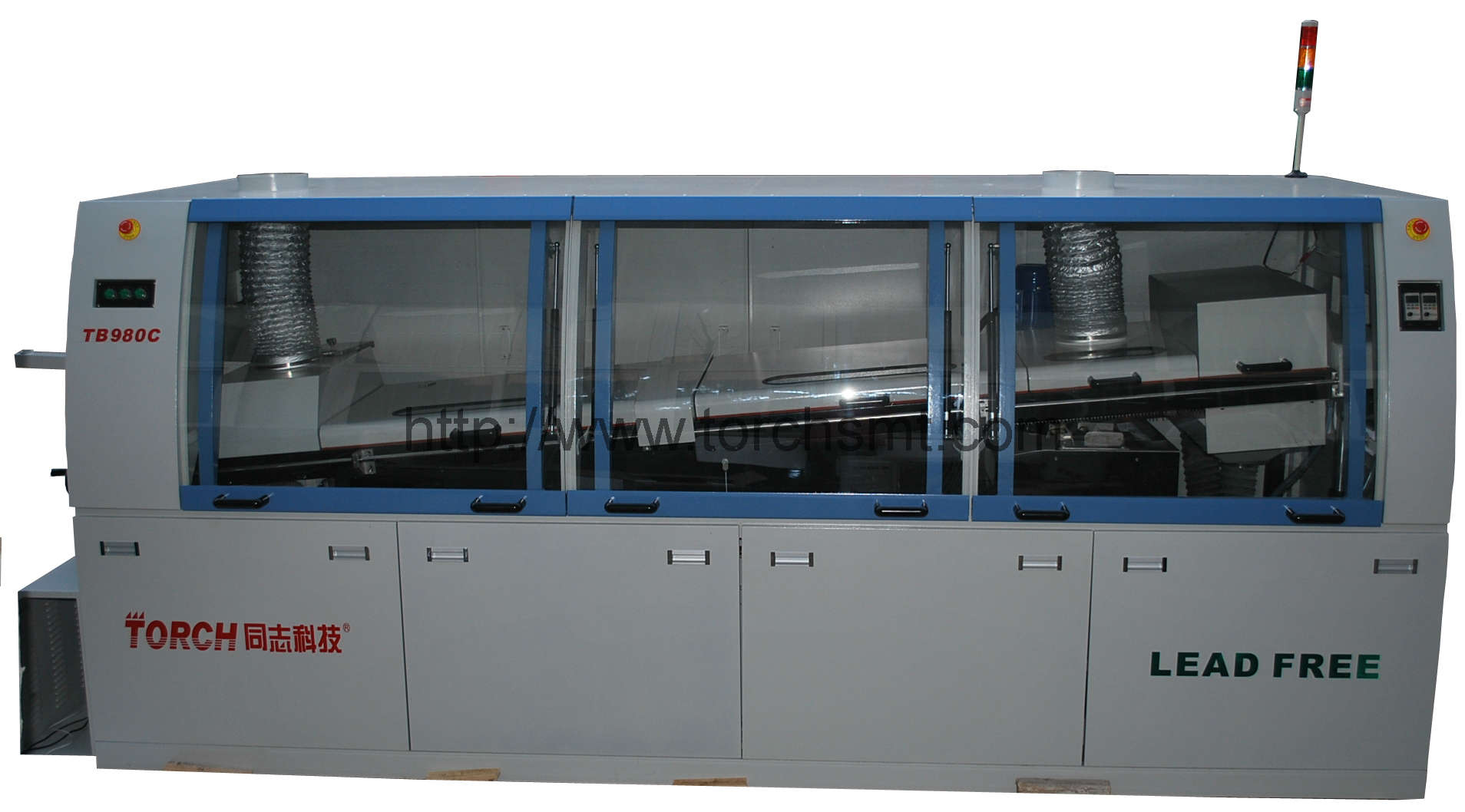

Lead-free wave soldering TB980C

Quantity:
TB980C has a synchronal feeding system. Synchronal chain with claws design, no noise, smooth conveying. Control system: Industry computer with signal processing by hearing is reliable and stable. Far IR preheating system to prevent the temperature going down. New type boost spraying system of the welding flux reduces the dosage of the flux. Conveying system: imported motor for driving with overload protection device. The width of the substrate is adjusted automatically by computer.



Introduction】:

  TB980C has a synchronal feeding system. Synchronal chain with claws design, no noise, smooth conveying. Control system: Industry computer with signal processing by hearing is reliable and stable. Far IR preheating system to prevent the temperature going down. New type boost spraying system of the welding flux reduces the dosage of the flux. Conveying system: imported motor for driving with overload protection device. The width of the substrate is adjusted automatically by computer.



Remark】:

technology parameter of TB980C:
Preheating Section (Infrared+ hot air): 4Kw * 2
Preheating temperature: Room-temperature ~180
Preheating control mode: PID Mode
Power of tin stove heating tube:2Kw * 8
Jointing control mode:PID Mode
Wave crest motor: imported high temperature resistant motor
Soldering tin capability:Max.500kg(Sn63Pb37);430Kg(Sn100%)
PCB width : Max.250mm
PCB Transmission speed: 0.5~1.8m/min
Transmission motor power:90W
Gross power:36Kw
Working power: 18Kw
Power supply : Three-phase,380V,50Hz
Air supply: above 5Mpa
Gas pressure of spray: 0.25Mpa~0.4Mpa
Spray gun driving type: need a spraying machine outside
Cooling system:wind cooling system.
Dimension (L*W*H) 4120 *1280 *1630
Weight: about 1050kg
