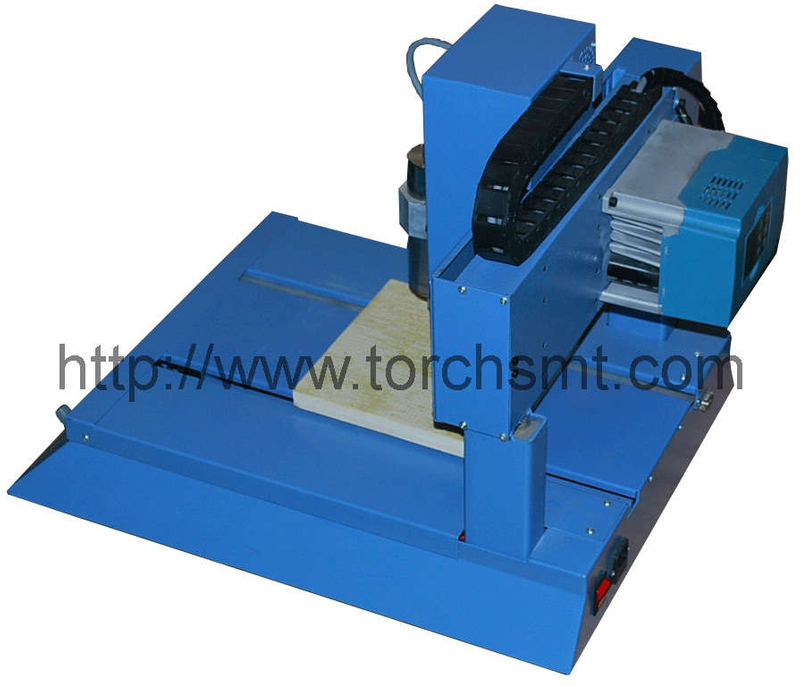

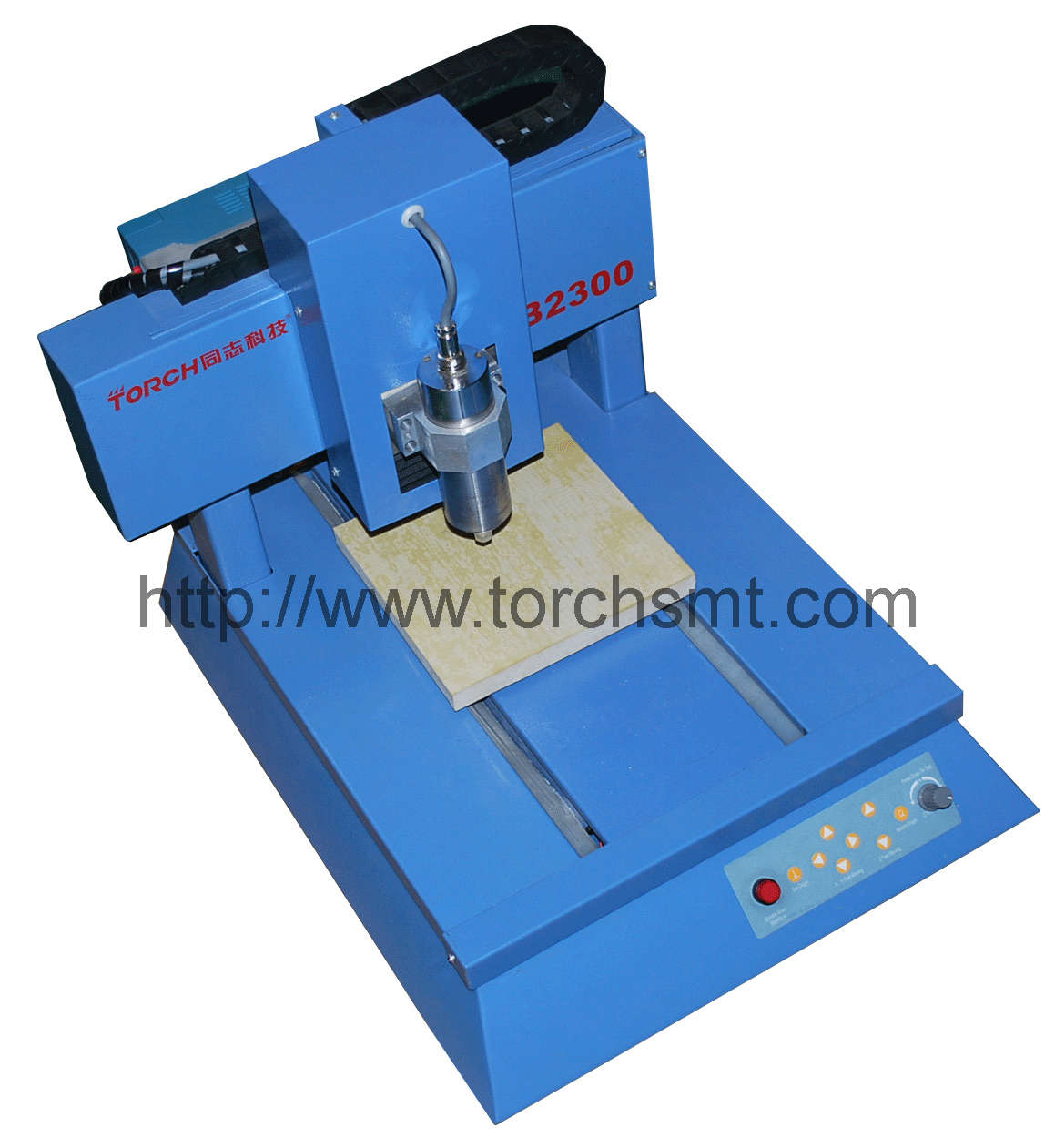

Plate making machine PCB2300

Quantity:
1.Drilling in the copper board
2.Control the depth of milling, strip unnecessary copper to form wire pad
3.Directly set and reset origin

 Introduction


  1.    Drilling in the copper board
  2.
  3.    Control the depth of milling, strip unnecessary copper to form wire pad
  4.
  5.    Directly set and reset origin
  6.
  7.    Virtual processing software, preview the processing path
  8.
  9.    Display the real process
  10.
  11.    Multi-holes at once, save the need for frequent tool change process
  12.
  13.    Resume drilling, stop and restart at any position
  14.
  15.    Combination of drilling, set two knives ,shorten process time to max degree
  16.
  17.    Select any region to drilling to meet high precision
  18.
  19.    Intelligent control the speed, optimize the speed according to tool

 Advantages


  1.    It is available for both sides and easy to operate
  2.
  3.    The speed can be changed ,you carve minimum line and stop when process
  4.
  5.    The re-drilling and region-drilling function, to make up some cases than the copper is not carved through.
  6.
  7.    5 position holes, more accurate position
  8.
  9.    Adjust Z axis when process to avoid can’t drill because the PCB is not level
  10.
  11.    Milling PCB function. Mill the PCB to keep the PCB level after repeated drilling and carving. Moreover, you can move the holes in the board to position the double-side board.
  12.
  13.    The test carved function to ensure the copper will drilled well to the great degree.
  14.
  15.    To drill the arc edges





 Parameter






         Model









         Workable area




         200*200mm




         Work side




         Single/double side




         Motor




         X  Y  Z axis step motor




         Main shaft speed




         60000rpm




         Max moving speed




         2.4m/min




         Least line diameter




         6mil(0.1524mm)




         Least line gap




         8mil(0.2032mm)




         Drilling depth




         0.02-3mm




         Drilling diameter




         0.4-3.175mm




         Work speed




         20mm/s (Max)




         Drilling speed




         100strokes/min(Max)




         Operate ways




         Semi-automatic




         Communication interface




         RS-232




         PC system




         CPU: PⅢ-500MHz ,Memory:256M




         Operation system




         Windows XP/Vista




         Power




         220V 50Hz




         Weight




         65kg




         Dimension




         490*570*490mm
