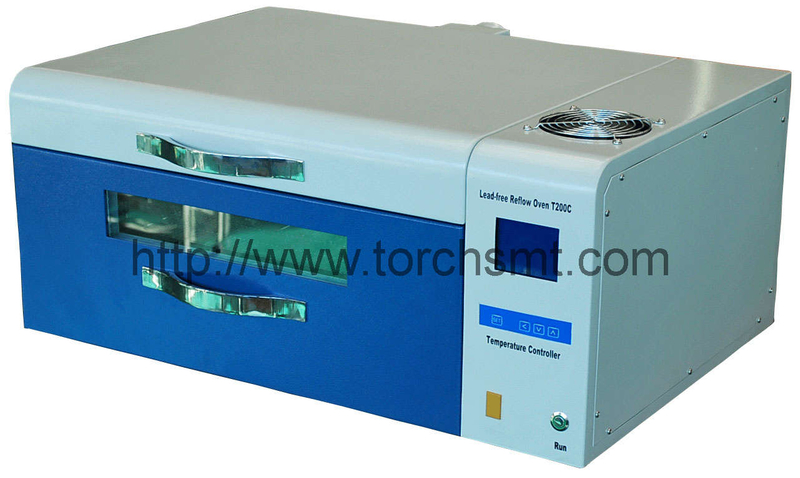

Intelligent lead-free Reflow OvenT200C

Quantity:
Along with the development of the electric technology, SMT is used more and more widely. The mini-type product line which is made by Torch is good for the popularization of SMT. Torch will contribute itself to the development of the electric industry of China.



   standout
     1、1.5mm cold-roll steel sheet, impact molding formed for one time
   2、TORCH patent of automatic door control technology ? on tray
   3、8K mirror 314 stailess steel as furnance

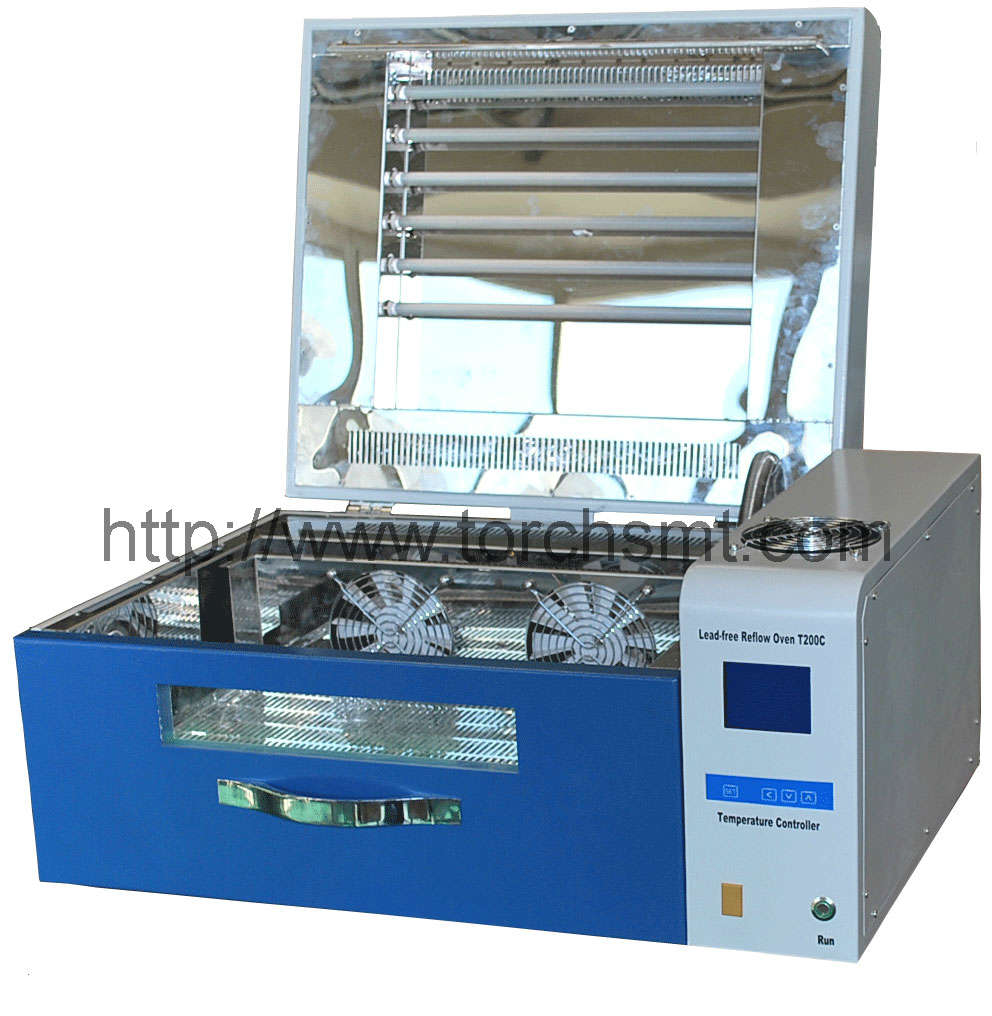

   4、Unique hot air cycling system in furnance
   5、heating system uses TORCH?  heating technology
   6、T200N uses the 6th generation of multi-chanel high precision temperature control system
   7、LED displayer temp control interface, digital measuring scale shows power output
   8、America Omega sensor as temperature testing system, which is the only one in china
   9、waste smoke  filtration system is used on TORCH reflow oven
   10、 Appearence, color
   11、2 suits of independent protection device on electric control system
   12、firstly developed proffesional temperature control software of desktop reflow oven, small oven steps into computer-control age TORCH, as a famous brand Desk Reflow Oven supplier, enjoy good reputation in china and oversea market. it own its own core technoly in SMT industries that other supplier doesn't have
   13、Intelligent software system of desktop reflow oven
   14、software can satisfy multi operation system and multi language environment of chinese and english
   15、remote control function
   16、realize RS485 communication and USD interface
   17、high temperature protection function
   18、configure cool-down system on oven
   19、4 layers of industrial package case
   20、stailess steel switch on operation panel
   21、the first Desktop Nitrogen reflow oven in SMT industry, selling well for 6 years


 Introduction:

 Along with the development of the electric technology, SMT is used more and more widely. The mini-type product line which is made by Torch is good for the popularization of SMT. Torch will contribute itself to the development of the electric industry of China.
 According to practical requirement of the clients, T200C is designed and manufactured by Torch technologists on the basis of technical accumulation for many years. It has many specialties such as high precision, multi-function; practicality; steady capability; long life; energy-saving with high efficiency; viewable operation. It adapts to the research and production in research center, war industry, middle- and small-sized corporation, small Private Corporation and other electronic production companies.
 Mean features:
 A.High precision. Multi-function. It satisfies all welding requirements of 0201 resistance and capacitance, fine spacing QFP, SOP, PLCC, BGA,CSP and so on. It meets the requirements of small batch and multimode product. It is also suitable for laboratory to go on researching.
 B.Energy-saving with high efficiency; A machine with several uses. It can be used to solidify SMT -Adhesive.
 C.Long life and smooth capability.
 D.Visible operation. It is the best choice for teaching and scientific research.

 Remark:

 ROHS directive has publicized. During the welding process with lead-free, all of the electron manufacturers are thinking one question how to ensure the quality of lead-free welding.It is all known that the lead-free welding is more difficult than lead welding in welding technic and quality control.In the century with lead-free,Torch applies itself to search the way how to satisfy the product with the trial-manufacture of lead-free welding and the manufacture of small batch and high quality for many years.

 According to the practical requirement of small and middle sized electron factory, the small batch trial- product in research center .T200C is designed and manufactured by Torch technologists on the basis of technical accumulation for many years. It has many specialties such as high precision, multi-function; practicality; steady capability; long life; energy-saving with high efficiency; viewable operation. It adapts to the research and production in research center, war industry, middle and small-sized corporation, small Private Corporation and other electronic production companies.

 • Real time testing with temperature curve

 Test the temperature curve of soldering at every time. During the process of welding, the actual temperature can be displayed at the same time. It is convenient to adjust and control the lead-free curve. Especially control the heat preservation zone and the melting zone

 ▲ Viewable operation, The real time display of temperature and the real time observation of the welding process. It is the best choice for science research and teaching.

 Technical instruction:






         Item




         Parameter




         Temperature control segment




         40 segment .The segment can be set in computer according to the actual requirement.




         Temperature-zone numbers




         Single-zone and multi-segment




         Temperature control system




         PC control system ,SSR non-contact output.




         Temperature accuracy




         ±2℃




         Warm-up time




         3min




         Temperature range




         Room-temperature -360 ℃




         Heating supply




         Infrared ray + Hot air convection




         Effective working table area




         360mm * 230mm (less than A4)




         Welding time




         3min±1min




         Temperature curve




         It can be set ,adjusted and tested according to the actual requirement .




         Cooling system




         Transverse flow equal cooling




         Rated voltage




         AC single-phase ,220V;50Hz




         Rated power




         3.8KW




         Mean power




         1.6kw




         Weight




         39kg




         Dimension




         Length*width*height 700*460*310mm
