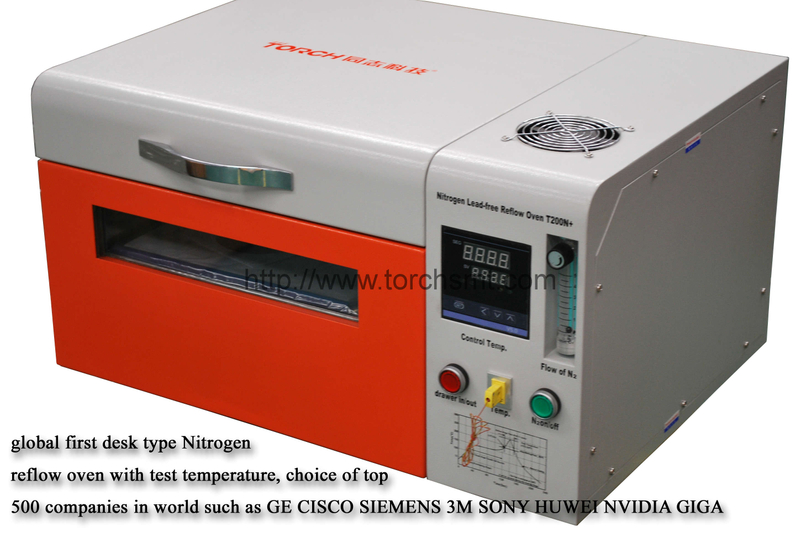

Lead free reflow oven with temperature testing T200N+

T200N+=nitrogen lead free reflow oven T200N+temperature tester T200N+ is not only with lead free welding function, but also with temperature measurement function.



1、1.5mm cold-roll steel sheet, impact molding formed for one time

2、TORCH patent of automatic door control technology ? on tray

3、8K mirror 314 stailess steel as furnance

4、Unique hot air cycling system in furnance

5、heating system uses TORCH?  heating technology

6、T200N uses the 6th generation of multi-chanel high precision temperature control system

7、LED displayer temp control interface, digital measuring scale shows power output

8、America Omega sensor as temperature testing system, which is the only one in china

9、waste smoke  filtration system is used on TORCH reflow oven

10、 Appearence, color

11、2 suits of independent protection device on electric control system

12、firstly developed proffesional temperature control software of desktop reflow oven, small oven steps into computer-control age TORCH, as a famous brand Desk Reflow Oven supplier, enjoy good reputation in china and oversea market. it own its own core technoly in SMT industries that other supplier doesn't have

13、Intelligent software system of desktop reflow oven

14、software can satisfy multi operation system and multi language environment of chinese and english

15、remote control function

16、realize RS485 communication and USD interface

17、high temperature protection function

18、configure cool-down system on oven

19、4 layers of industrial package case

20、stailess steel switch on operation panel

21、the first Desktop Nitrogen reflow oven in SMT industry, selling well for 6 years

22、T200N+ is the only one with real-time temperature testing function


T200N+=nitrogen lead free reflow oven T200N+temperature tester
T200N+ is not only with lead free welding function, but also with temperature measurement function.
Adjusting temperature curve constantly in order to get better welding in SMT field. Adjusted temperature is very important which is testing temperature by temperature tester. Temperature tester is used to measure temperature, process improvement and data analysis. In addition it can save data. This machine can meet requirements of ISO9001 system greater.
High reliability; measure actual temperature in real time for pad; draw temperature chart randomly; the format of temperature report is nice; high cost performance.
T200N+ introduce:
T200A is manufactured by Torch in 2001, which is the first desk lead free reflow oven.
As an epoch-making product, T200C break instrument controlling market in 2005.
T200N is the first nitrogen reflow oven in domestic in 2006. It entered the Texas instrument of United States, University of Texas in United States, Status Pro Corporation in Germany, LOGICOM company in Singapore, Flextronics Technology (Shanghai), Datang Microelectronics Technology Co., Ltd, Tianjin University, Shanghai Jiao Tong University, Beijing University of Technology, Zhenhua semiconductor companies and other well-known research laboratories and factories. and other well-known enterprises and laboratories.
Torch develops and manufactures new products T200N+ according to requirement and need from domestic and foreign market. T200N+ is suitable to small batch products, it is the good choice for electronics enterprises and research institutes, at the same time it is the complementary equipment for large and medium-sized production line.
T200N+ unique features

  1. With all advance of T200N
  2. With single channel temperature measurement (multi channels is optical), T200N+ has been the first-class reflow oven. It make up market blank.
  3. With heater installation technology which is patent in desk reflow oven, the temperature is more uniformity which is less than 10℃, it is the highest standard.
  4. With air cycle and vent technology which is patent in desk reflow oven, it improve temperature uniformity and air cycle effect.
  5. With door drive device which is patent in desk reflow oven to make sure worktable stable when PCB is out, and at the same time it can make chips don’t move.
  6. With save nitrogen technology. When door is open, nitrogen will close automatically, when door is close, nitrogen will open automatically. It can save nitrogen and reduce cost effectively.
  7. With vent smoke function. It is convenient to emitting exhaust gas.
  8. With purifying and filtering exhaust gas function
  9. With automatic door device. When finishing welding, door will open. With airproof technology, it can improve heat preservation effect and save nitrogen.

T200N+ features
▲ Computer control
Operate parameters by computer software can meet different welding requirement.

▲ High precision ,multi- functions

It breaks through the shortages such as the difficulty of meter control program, the difficulty of modify parameter, limited storage of temperature curve. It adopts the software for temperature control, which is produced by Torch itself. The temperature curve can be set intuitively. And a large number of temperature curves can be stored. Analysis and statistics function, printing function.

Batch set 40 segments temperature curce
Real time testing with temperature curve
Test the temperature curve of soldering at every time. During the process of welding, the actual temperature can be displayed at the same time. It is convenient to adjust and control the lead-free curve. Especially control the heat preservation zone and the melting zone
▲ Viewable operation, The real time display of temperature and the real time observation of the welding process. It is the best choice for science research and teaching.

Tested temperature curve
▲ temperature curve: real temperature curve and history temperature curve can be analyzed, it is convenient to improve.

T200N+ technology parameters




Temperature control segment

40 segment .The segment can be set in computer according to the actual requirement.

Temperature-zone numbers

Single-zone and multi-segment

Temperature control system

PC control system ,SSR non-contact output.

Temperature accuracy


Warm-up time


Temperature range

Room-temperature -360 ℃

Heating supply

Infrared ray + Hot air convection

Effective working table area

270mm * 220mm (less than A4)

Welding time


Temperature curve

It can be set, adjusted and tested according to the actual requirement .

Cooling system

Transverse flow equal cooling

Rated voltage

AC single-phase ,220V;50Hz

Rated power


Mean power





Length*width*height 820*460*310mm
