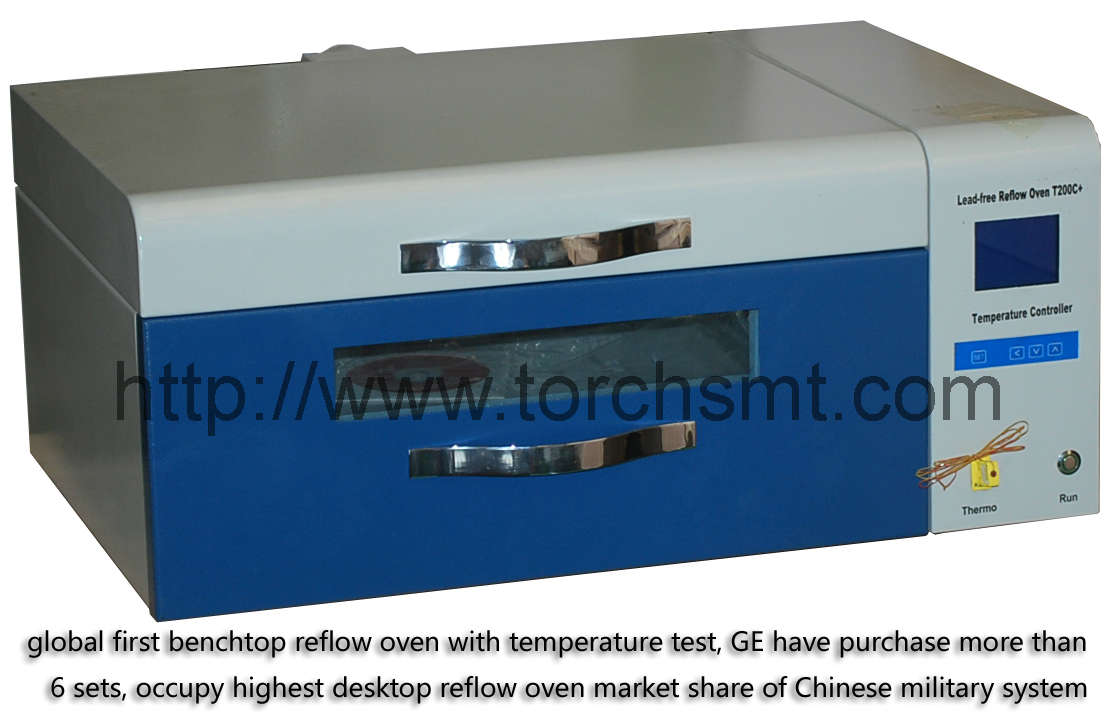

Lead free reflow oven with temperature testing T200C+

Quantity:
Lead free reflow oven T200C+= Reflow oven T200C + temperature curve tester T200C+ is not only with lead free welding function, but also with temperature measurement function.

  standout

    1、1.5mm cold-roll steel sheet, impact molding formed for one time
  2、TORCH patent of automatic door control technology ? on tray
  3、8K mirror 314 stailess steel as furnance
  4、Unique hot air cycling system in furnance
  5、heating system uses TORCH?  heating technology
  6、T200N uses the 6th generation of multi-chanel high precision temperature control system
  7、LED displayer temp control interface, digital measuring scale shows power output
  8、America Omega sensor as temperature testing system, which is the only one in china
  9、waste smoke  filtration system is used on TORCH reflow oven
  10、 Appearence, color
  11、2 suits of independent protection device on electric control system
  12、firstly developed proffesional temperature control software of desktop reflow oven, small oven steps into computer-control age TORCH, as a famous brand Desk Reflow Oven supplier, enjoy good reputation in china and oversea market. it own its own core technoly in SMT industries that other supplier doesn't have
  13、Intelligent software system of desktop reflow oven
  14、software can satisfy multi operation system and multi language environment of chinese and english
  15、remote control function
  16、realize RS485 communication and USD interface
  17、high temperature protection function
  18、configure cool-down system on oven
  19、4 layers of industrial package case
  20、stailess steel switch on operation panel
  21、the first Desktop Nitrogen reflow oven in SMT industry, selling well for 6 years


New Additional function: with glass observer

Lead free reflow oven T200C+= Reflow oven T200C + temperature curve tester
T200C+ is not only with lead free welding function, but also with temperature measurement function.
Adjusting temperature curve constantly in order to get better welding in SMT field. Adjusted temperature is very important which is testing temperature by temperature tester. Temperature tester is used to measure temperature, process improvement and data analysis. In addition it can save data. This machine can meet requirements of ISO9001 system greater.

High reliability; measure actual temperature in real time for pad; draw temperature chart randomly; the format of temperature report is nice; high cost performance.
T200C+ introduce
T200A is manufactured by Torch in 2001, which is the first desk lead free reflow oven.
As an epoch-making product, T200C break instrument controlling market in 2005. In last 4 years, T200C entered General Electric (U.S.), Sony (Japan), the NVIDA (United States), Chinese Academy of Sciences of the semiconductor, aerospace electronics, BYD and other well-known enterprises and laboratories.
Torch develops and manufactures new products T200C+ according to requirement and need from domestic and foreign market. T200C+ is suitable to small batch products, it is the good choice for electronics enterprises and research institutes, at the same time it is the complementary equipment for large and medium-sized production line.
T200C+ unique features

  1. With all advantage of T200C
  2. With better airproof function, the temperature is more uniformity.
  3. With emitting smoke function.
  4. With purifying and filtering exhaust gas function.
  5. With single channel temperature measurement (multi channels is optical), T200C+ has been the first-class reflow oven.

▲high precision, multi function;
40 segment temperature curves can be set. It satisfies the welding of different components.

▲computer control
T200C+ breaks through the shortages such as the difficulty of meter control program, the difficulty of modify parameter, limited storage of temperature curve. It adopts the software for temperature control, which is produced by Torch itself. The temperature curve can be set intuitively. And a large number of temperature curves can be stored. Analysis and statistics function, printing function.

Real time testing with temperature curve
Test the temperature curve of soldering at every time. During the process of welding, the actual temperature can be displayed at the same time. It is convenient to adjust and control the lead-free curve. Especially control the heat preservation zone and the melting zone.
▲Viewable operation
The real time display of temperature and the real time observation of the welding process. It is the best choice for science research and teaching.
T200C+ technology parameters



Item

Parameter

Temperature control segment

40 segment .The segment can be set in computer according to the actual requirement.

Temperature-zone numbers

Single-zone and multi-segment

Temperature control system

PC control system ,SSR non-contact output.

Temperature accuracy

±2℃

Warm-up time

3min

Temperature range

Room-temperature -360 ℃

Heating supply

Infrared ray + Hot air convection

Effective working table area

360mm * 230mm (less than A4)

Welding time

3min±1min

Temperature curve

It can be set ,adjusted and tested according to the actual requirement .

Cooling system

Transverse flow equal cooling

Rated voltage

AC single-phase ,220V;50Hz

Rated power

3.8KW

Mean power

1.6kw

Weight

39kg

Dimension

Length*width*height 700*460*310mm
