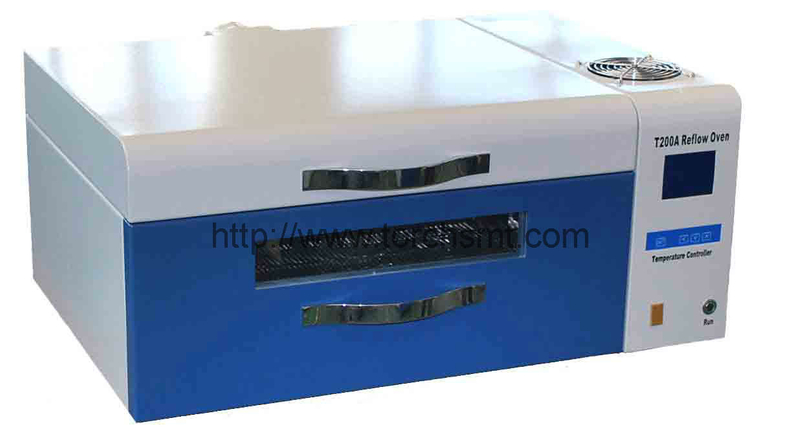

Lead-free Reflow Oven T200A

Quantity:
Along with the development of the electric technology, SMT is used more and more widely. The mini-type product line which is made by Torch is good for the popularization of SMT. Torch will contribute itself to the development of the electric industry of China. According to practical requirement of the clients, T200A is designed and manufactured by Torch technologists on the basis of technical accumulation for many years. It has many specialties such as high precision, multi-function; practicality; steady capability; long life; energy-saving with high efficiency; viewable operation. It is been adapted in research center, war industry, middle- and small-sized corporation, small Private Corporation and other electronic production companies.

 Introduction

 Along with the development of the electric technology, SMT is used more and more widely. The mini-type product line which is made by Torch is good for the popularization of SMT. Torch will contribute itself to the development of the electric industry of China.
 According to practical requirement of the clients, T200A is designed and manufactured by Torch technologists on the basis of technical accumulation for many years. It has many specialties such as high precision, multi-function; practicality; steady capability; long life; energy-saving with high efficiency; viewable operation. It is been adapted in research center, war industry, middle- and small-sized corporation, small Private Corporation and other electronic production companies.

 Main features:
 A. High precision. Multi-function. It satisfies all welding requirements of 0201 resistance and capacitance, fine spacing QFP, SOP, PLCC, BGA,CSP and so on. It meets the requirements of small batch and multimode product. It is also suitable for laboratory to take research.
 B. Energy-saving with high efficiency; A machine with several uses. It can be used to solidify SMT -Adhesive.
 C.Long life and smooth capability.
 D.Visible operation. It is the best choice for teaching and scientific research.

 Main technical parameter :






         Item




         Parameter




         Temperature control segment




         20-40 segments. the numbers of temperature control segment and the temperature control accuracy are the highest in Market. User can set the segment according to the requirements in soldering machine.




         Temperature-zone numbers




         Single segment and multi-segment control




         Temperature control system




         Automatic temperature control with PID intelligence microcomputer. SSR non-contact output.




         Temperature accuracy




         ±2℃




         Warm-up time




         2min




         Temperature range




         Room-temperature-350℃,high temperature resistant material, it is suitable for small-batch lead-free soldering.




         Heating supply




         Infrared ray + Hot air convection

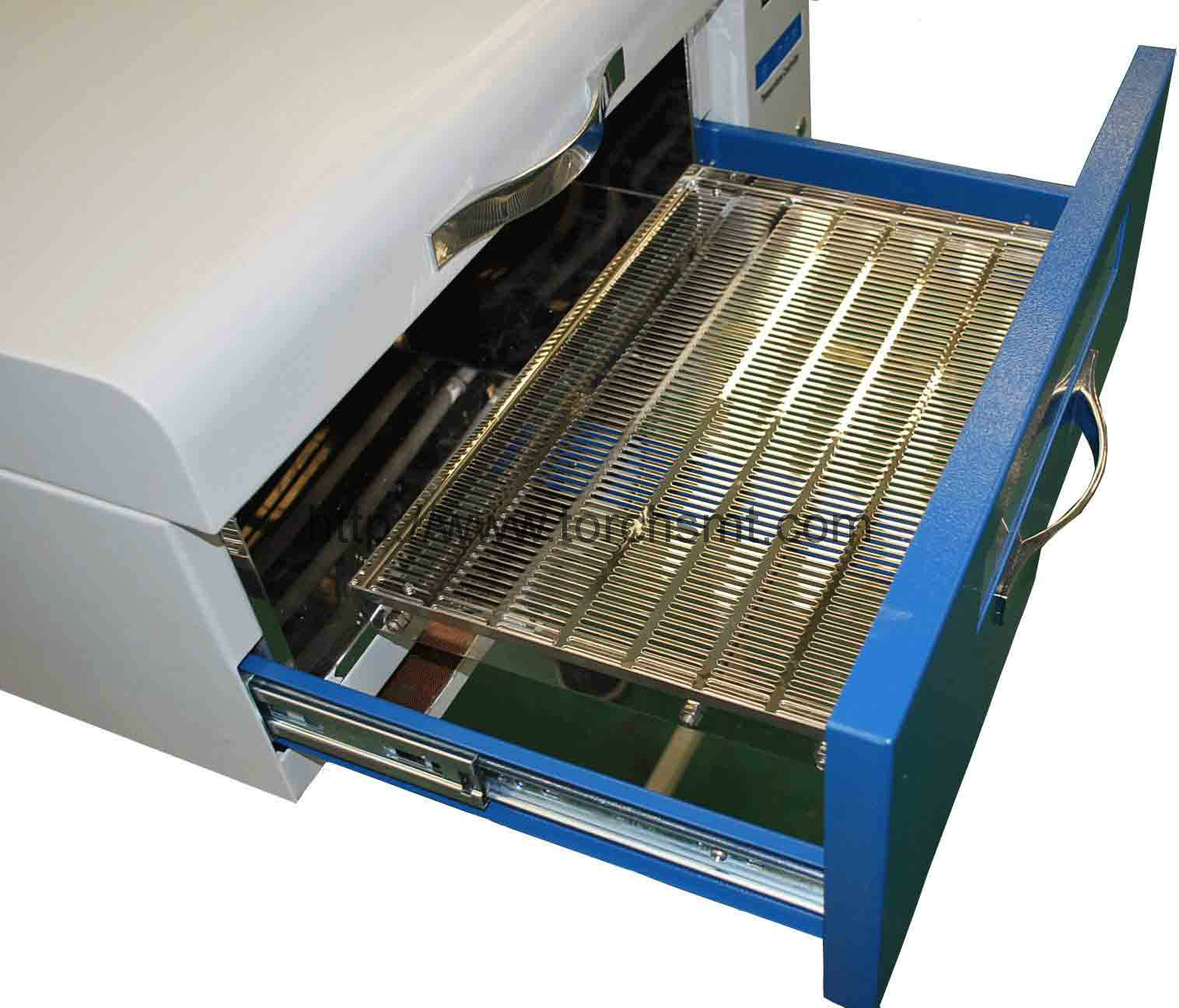

         Effective working table area




         360mm*230mm(less than A4)




         Welding time




         3min±1min




         Temperature curve




         More temperature curve can be set in soldering machine according to the requirements.




         Cooling system




         Transverse flow equal cooling




         Rated voltage




         AC single-phase ,220V;50Hz




         Rated power




         3.8KW




         Mean power




         1.6kw




         Weight




         45kg




         Dimension




         Length*width*height 700*460*310mm
