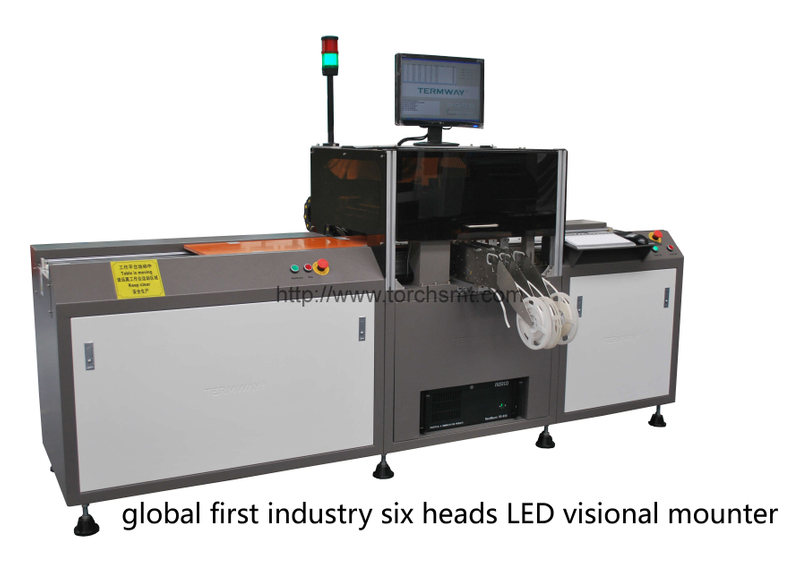

LED Automatic Chip Mounter LED660V

Quantity:
LED 660V is a professional LED pick and place machine, features high speed, high accuracy. It achieves LED circuit board high-volume assembly.

 configure with image identification, meet PCB MARK recognization, solve the problem of low precision  result by  LED PCB board too long and big error.



   LED660V summary:
   1. The first special LED pick and place machine with 6 heads .
   2. The first special LED pick and place machine used servo control system in SMT industry.
   3. The first special LED pick and place machine used high precision ball screw transmission.
   4. The unique LED pick and place machine that can precision mount less than 20mm SOP , Columnar diode, transistor ,SOT and 0402 above all component (not include thickness more than 5mm Aluminum electrolytic capacitor ).
   5. The unique LED pick and place machine that configured self-patent intelligent electronic feeder.
   6. The unique LED pick and place machine that can realize program and mount PCB puzzle.
   7. The unique LED pick and place machine that can vision program.
   8. The unique LED pick and place machine that can offline program.
   9. Powerful data input function can meet the need of input any format of PCB.
   10. The unique LED pick and place machine that can mount 0402 stably and precision.
   11. With safety cover, can effectively protect the operator and prevent the dust .
   12. Suit for above 5 types nozzle and software can The software automatically prompt replacement nozzle type.
   13. Accuracy speed is 14000CPH.

   Introduce:

   LED660V is a professional LED pick and place machine, features high speed, high accuracy. It achieves LED circuit board high-volume assembly.

   Feature:

   1 Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed.

   2 6 Mounting head driving system uses servo motor , together with high precision ball screw to achieve the completion of the LED component picking and placing.

   3 6 groups of mount head improves production efficiency of 400% than 1 group.

   4 Visual programming automatically, without input component coordinates by hand. Programming is simple, fast  ,whole program need only 10 minis ,easy for beginners to learn.

   5 Different sizes of smart feeder , which will not go forward if the component is stuck or isn’t picked up, can meet different requirements of LED mount.

   6 Cost-effective LED chip machine is most suitable for high-volume LED production.

   7 The whole machine is controlled by industrial computer with professional software, easy to operate and use.
   8 Easy to import CAD data of the circuit board.

   9 Stable and easy to complete the programming and placement of LED panel board

   10 Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.

   11 The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.

   12 If the board have manufacturing quality problems, LED660V can shift the component place for accurate mounting.

   13 Software can realize to achieve automatically four mounting heads function.

   14 Software increases the XYZ axis detection limit when moves

   15 software increases 6 grades speed changing function, you can check out the best speed setting  according to the distance check sheet and to do speed adjustment, which can increase the stability for long time usage.

   16 PCB platform has vacuum absorb function, which can help large-size PCB board position accurately, improve placement accuracy.  Meanwhile, it can complete soft flexible light strip of (FPC) position and mount.(Optional)

   17 There is vacuum pump in the machine that no need to configure it separately and save the power, lower the noisy.

   18 LED660V is special LED mounter, can mount all kinds of SMD LED chip, all 0402 above component (except more than 5mm Aluminum electrolytic capacitors ), at the same time can mount cylindrical diodes, transistors, SOP SOT and less than 20mm IC.

   19 Can meet at any angle component placement. For example, can mount the LED lamp cup.

   20 Powerful security systems, the software can automatically tip on maintenance.

   Standard configuration:

   1. Industrial Computer 1 suit

   2. Mounting head 6 groups

   3. Nozzle 6 pcs

   4. Feeder platform  GFTA-T06  1 set

   Optional part:

   1. Automatic feeder 8mm, 12mm, 16mm and 24mm

   2. Nozzle

   3. Industrial air pump

   4. UPS

   5. Feeder platform  GFTA-T06

   6. Vacuum absorb platform 1 set

   Technical Parameter




           Model




           LED660V




           Mount head




           6 pcs




           Max circuit board size




           1200*350mm




           Max moving range




           X axis 1500mm, Y axis410mm




           Max moving range of Z axis




           15mm




           Typical Mounting speed




           13000-14000cph




           Max mount speed




           18000cph




           Mount accuracy




           +/-0.1mm




           Position method




           Machinery position




           Component available




           0603 and above SMD component and LED,SOT,SOP




           Programme method




           Automatic data import/ video study/ keyboard input




           Belt feeder




           8mm, 12mm, 16mm and 24mm




           Feeder num




           6 pcs of GF series feeder can be set (12 pcs feeders are optional)




           Operation system




           WINDOWS XP




           Compressed air




           internal vacuum, (large production  should use industrial air pump)




           Power supply




           220V,50Hz, 4.5 Kw




           Weight




           500Kg




           Dimension




           2600×680×1500mm
