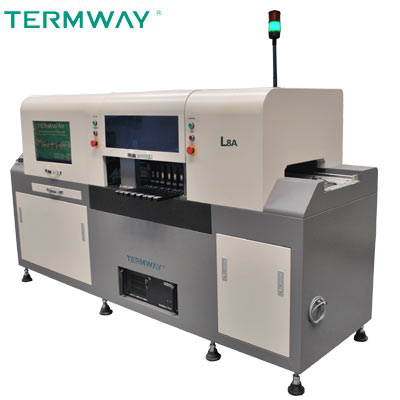

World First Inline high-speed industrial LED placement L8A

World First Inline high-speed industrial LED placement L8A

Quantity:
  2
  3 4

 Granite moving chassis + Mount head adjustable patented design=Precision high-speed stability=L8A
 What is L8A?
     1. L8A is a fully automatic LED placement machine.
     2. L8A is a professional LED circuit board placement machine.
     3. L8A is an inline LED circuit board  placement machine. It can connect with automatic screen printing machine, reflow seamless.
     4. L8A is a high speed LED circuit board placement machine. For 1200MM circuit board,Typical Mounting speed 25000-30000cph(3528 component).
 5. L8A is a placement machine with 8 Mounting heads.

 6. L8A is a high precision LED circuit board placement machine.
 7. model L8A meaning:L means specially used in LED Industry, 8 represents 8 mounting heads. A represents distance of heads can be adjusted according to LED components' distance.
 8.L8A is an industrial-grade LED circuit board placement machine, machine chassis is made with natural granite, moving chassis thickness of up to 150mm, flatness tolerance up to 0.009mm, long-term use will not change the mechanical precision, natural granite chassis by long-term natural aging, organizational structure uniform, linear expansion coefficient is extremely small, internal stress completely disappeared, no deformation. This chassis water absorption <0.13%, Shore hardness HS70 above. Ensure the accuracy of the  machine using more than a decade.
L8A Features
1. Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed
2. Using natural granite design and manufacture of high precision integrated motion platform technology. Mounter ensure long-term use more than a decade, no change movement accuracy. Meanwhile, the integrated structure also has excellent shock resistance.
3. 8 groups of mount head improve production efficiency of 500% than 1 group.
4. Visual programming automatically, without input component coordinates by hand. Programming is simple, easy for beginners to learn.
5. Different sizes of feeder can meet different requirements of LED mounting.
6. Cost-effective LED chip machine is most suitable for high-volume LED production.
7. The whole machine is controlled by industrial computer with professional software, easy to operate and use.
8. Easy to import CAD data of the circuit board.
9. Stable and easy to complete the programming and placement of LED panel board
10.Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.
11. The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.
12. Software can realize to achieve automatically 6/8 mounting heads function.
13. Software increases the XYZ axis detection limit when moves
14. Software increases multigrades speed changing function, you can check out the best speed setting according to the distance check sheet and to do speed adjustment, which can increase the stability for long time usage.
15. PCB platform has vacuum absorb function, which can help largesize PCB board position accurately, improve placement accuracy. Meanwhile, it can complete soft flexible light strip of (FPC) position and mount.
16. The machine achieve the inline transmission of the board, effective laborsaving, efficiency, compared to similar products, you can save at least one operator. If you configure the SP400 Automatic screen printing machine, you can save at least two operators, improve the production efficiency of the entire production line and reduce the cost of long term use at the same time.

Standard configuration
1.Industrial Computer 1 suit
2. Mounting head 8 groups
3. Nozzle 8 pcs
4. Feeder base GFTA-T08 1 set

Optional part
1. Automatic feeder 8mm, 12mm, 16mm , 24mm,32mm
2. Nozzle
3. Industrial air pump/ Silent air pump
4. UPS
5. Feeder platform GFTA-T08 1 set

L8ATechnology Parameter



       Max circuit board size        1200×350mm
       Max moving range        X axis1500mm,Y axis 410mm
       Max moving range of Z axis        15mm
       Typical Mounting speed        25000-30000cph(3528芯片)
       Max mount speed        35000cph
       Mount accuracy        ±0.05mm
       Position method        Visual position + Machinery position
       Component available        0603 and above SMD component and LED,SOT,SOP
       Programming method        Automatic data import/ video study/ keyboard input
       Belt feeder        8mm,12mm,16mm , 24mm ,32mm
       Feeder num        8 pcs of GF series feeder can be set(16 pcs feeders are optional)
       Operation system        WINDOWS XP/WIN7(32bit)
       Compressed air        80psi (0.5Mpa), gas flow ≥160L / M
       Power supply        220V,50Hz,4.5Kw
       Weight        800Kg
       Dimension        2510×760×1280mm
