● Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed.

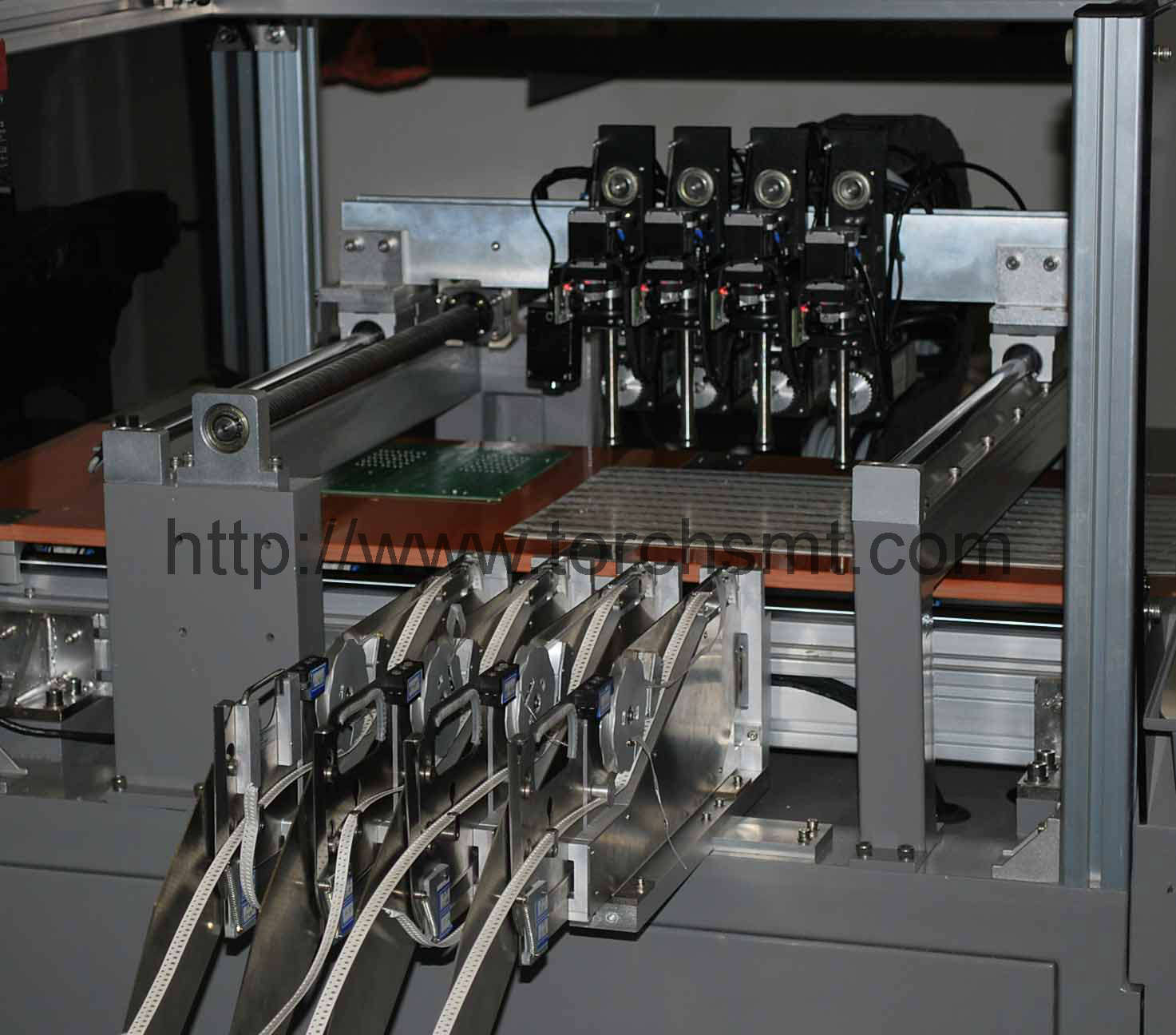

● Mounting head driving system uses servo motor , together with high precision ball screw to achieve the completion of the LED component picking and placing.
● 4 groups of mount head improves production efficiency of 300% than 1 group.
● Visual programming automatically, without input component coordinates by hand. Programming is simple, easy for beginners to learn.
● Different sizes of feeder can meet different requirements of LED mount.
● Cost-effective LED chip machine is most suitable for high-volume LED production.
● The whole machine is controlled by industrial computer with professional software, easy to operate and use.
● Easy to import CAD data of the circuit board.
● Stable and easy to complete the programming and placement of LED panel board
● Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.
● The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.
● If the board have manufacturing quality problems, LED640 can shift the component place for accurate mounting.
● Software can realize to achieve automatically four mounting heads function.
● Software increases the XYZ axis detection limit when moves
● software increases 6 grades speed changing function, you can check out the best speed setting according to the distance check sheet and to do speed adjustment, which can increase the stability forlong time usage.
● PCB platform has vacuum absorb function, which can help large-size PCB board position accurately, improve placement accuracy. Meanwhile, it can complete soft flexible light strip of (FPC)position and mount.(Optional)
● There is vacuum pump in the machine that no need to configure it separately and save the power,lower the noisy.
Standard configuration
1. Industrial Computer 1 suit
2. Mounting head 4 groups
3. Nozzle 4 pcs
Optional part
1. Automatic feeder 8mm, 12mm, 16mm and 24mm
2. Nozzle
3. Vacuum absorb platform 1 group
Technical Parameter

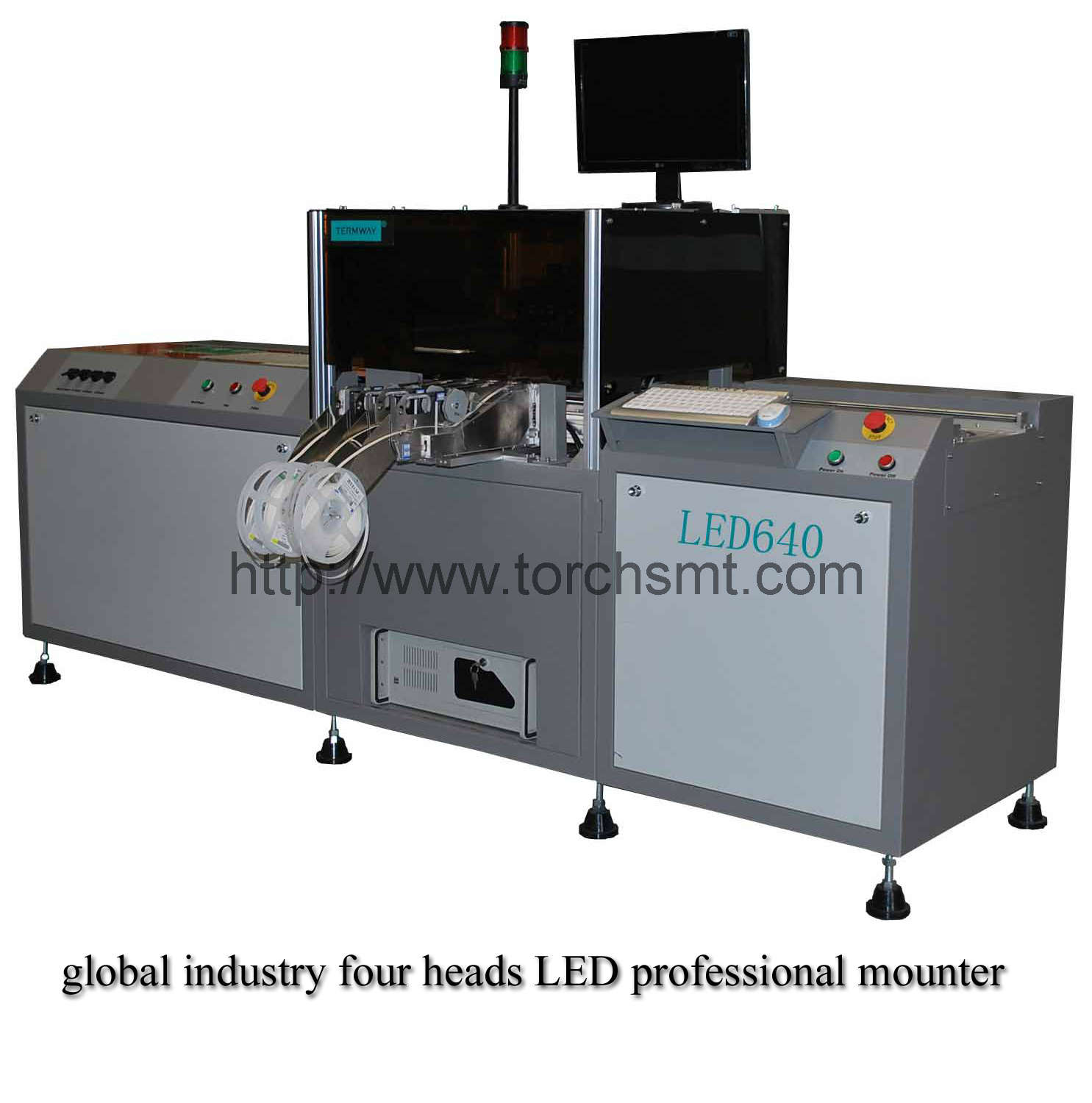

| Model | LED640 |
| Mount head | 4 pcs |
| Max circuit board size | 1200*350mm |
| Max moving range | X axis 1500mm, Y axis 410mm |
| Max moving range of Z axis | 15mm |
| Typical Mounting speed | 8000-9600 cph |
| Max mount speed | 12000cph |
| Mount accuracy | +/-0.1mm |
| Position method | Machinery position |
| Component available | 0603and above SMD component and LED |
| Programme method | Automatic data import/ video study/ keyboard input |
| Belt feeder | 8mm, 12mm, 16mm and 24mm |
| Feeder num | 4 pcs of GF series feeder can be set |
| Operation system | WINDOWS XP |
| Compressed air | Vacuum air in machine, no need to add air |
| Power supply | 220V,50Hz, 4 Kw |
| Weight | 360kg |
| Dimension | 2600*680*1500mm |
