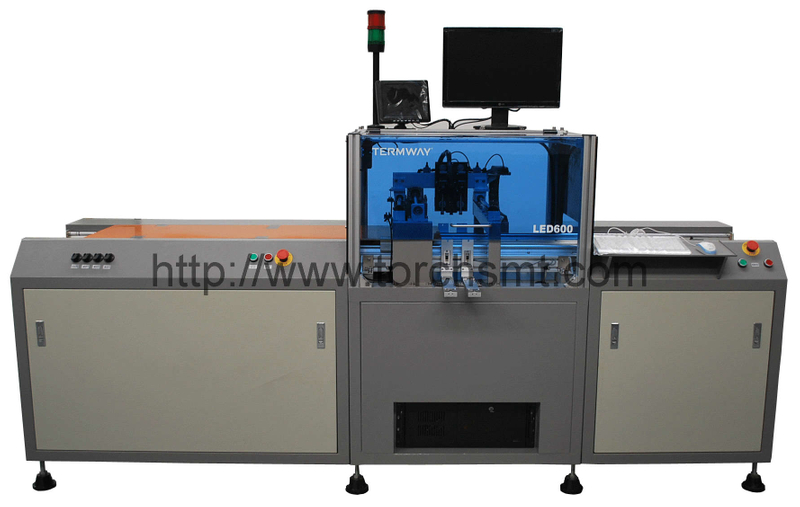

Automatic LED pick&place machine LEd600

LED 600 is a professional LED pick and place machine, features high speed, high accuracy. It achieves LED circuit board high-volume assembly.

Quantity:
LED 600 is a professional LED pick and place machine, features high speed, high accuracy. It achieves LED circuit board high-volume assembly.





   LED660 Summary
   1. The first industry of special LED chip mounter using servo control system .
   2. The first industrial using high precision ball screw drive LED chip mounter
   3. The only one can reliable mount 20mm following SOP ,diode ,triode, SOT and more than 0603 apart (higher than 5m aluminum electrolytic capacitor)
   4. Only a configuration own patent intelligent electronic feeder of LED automatic chip mounter
   5. Only one complete the programming and placement of LED panel board
   6. The only one to achieve off line programming feature LED placement machine .
   7. The only one an video programming LED full automatically placement machine .
   8. Powerful data input feature , can satisfy any format PCB data import .
   9. The only one can reliable mount 0402 components LED full automatically placement machine .
   10. The equipment with safe cover ,protect the personal safe effectively ,at the same time anti dust .
   11. Can be configured more than 5 nozzle , softeware note you change nozzle automatically .
   12. Actual mounting speed is 6000cph.

 Remark

 1 Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed

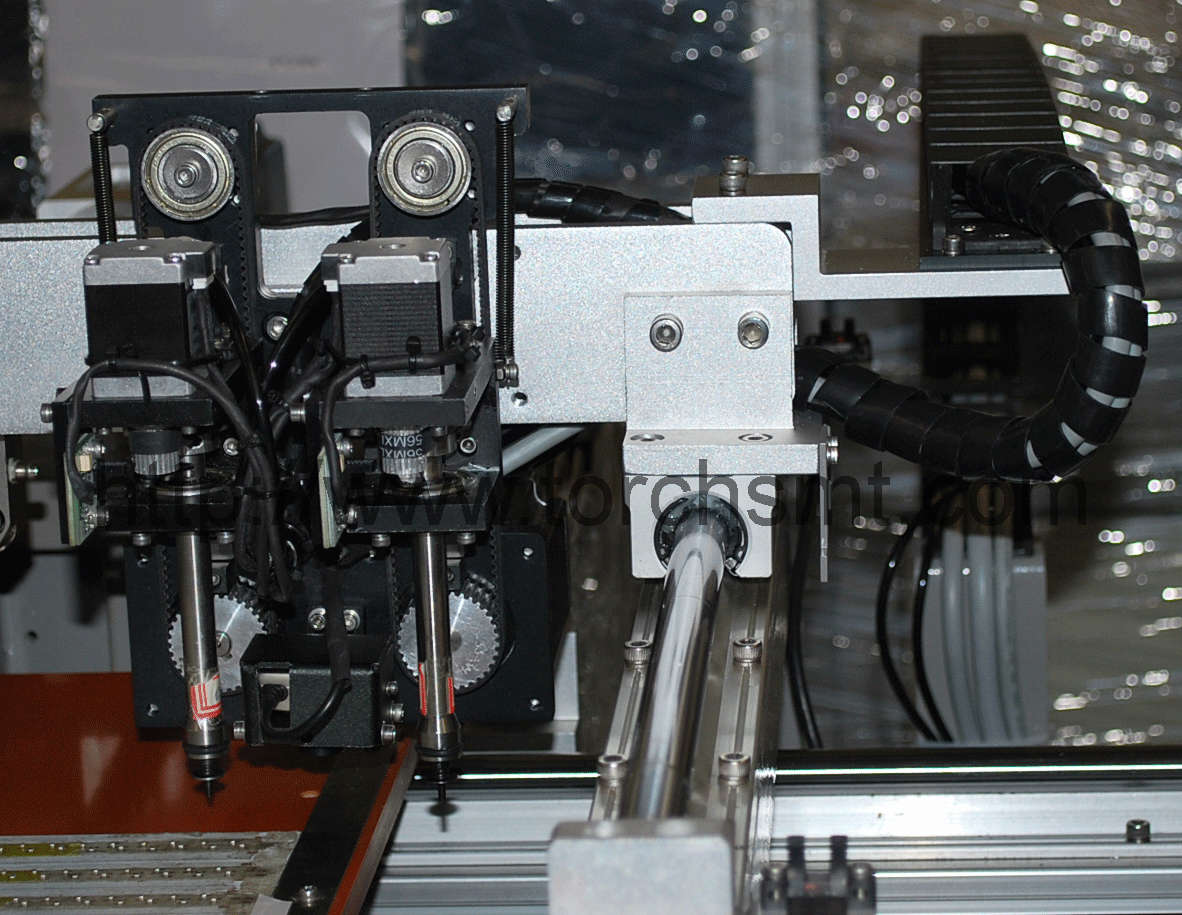

 2 Mounting head driving system uses servo motor, together with high precision ball screw to achieve the completion of the LED component picking and placing.
 3 2 groups of mount head improves production efficiency of 60% than 1 group.
 4 Visual programming automatically, without input component coordinates by hand. Programming is simple, easy for beginners to learn.
 5 Different sizes of feeder can meet different requirements of LED mount.
 6. Cost-effective LED chip machine is most suitable for high-volume LED production.
 7 The whole machine is controlled by industrial computer with professional software, easy to operate and use.
 8 Easy to import CAD data of the circuit board.
 9 Stable and easy to complete the programming and placement of LED panel board
 10 Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.
 11 The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.
 12 If the board have manufacturing quality problems, LED600 can shift the component place for accurate mounting.
 13 Software can realize to achieve automatically double mounting head function.
 14 Software increases the XYZ axis detection limit when moves
 15 software increases 6 grades speed changing function, you can check out the best speed setting according to the distance check sheet and to do speed adjustment, which can increase the stability for long time usage.
 16 PCB platform has vacuum absorb function, which can help large-size PCB board position accurately, improve placement accuracy. Meanwhile, it can complete soft flexible light strip of (FPC) position and mount. (
Optional)

 Standard configuration

 1. Industrial Computer 1 suit
 2. Mounting head 2 groups
 3. Nozzle 4 pcs



 Optional part

 1. Automatic feeder 8mm, 12mm, 16mm and 24mm
 2. Nozzle
 3. Industrial air pump
 4. Vacuum absorb platform 1 group

 Technical Parameter






         Model




         LED600




         Mount head




         2 pcs




         Max circuit board size




         1200*350mm




         Max moving range




         X axis 1500mm, Y axis 360mm




         Max moving range of Z axis




         10mm




         Typical Mounting speed




         5500-6100 cph




         Max mount speed




         7000cph




         Mount accuracy




         +/-0.1mm




         Position method




         Machinery position




         Component available




         0603and above SMD component and LED




         Programme method




         Automatic data import/ video study/ keyboard input




         Belt feeder




         8mm, 12mm, 16mm and 24mm




         Feeder num




         2 pcs of GF series feeder can be set




         Operation system




         WINDOWS XP




         Compressed air




         80 psi(0.5Mpa)




         Power supply




         220V,50Hz, 3 Kw




         Weight




         320kg




         Dimension




         2600*680*1500mm
