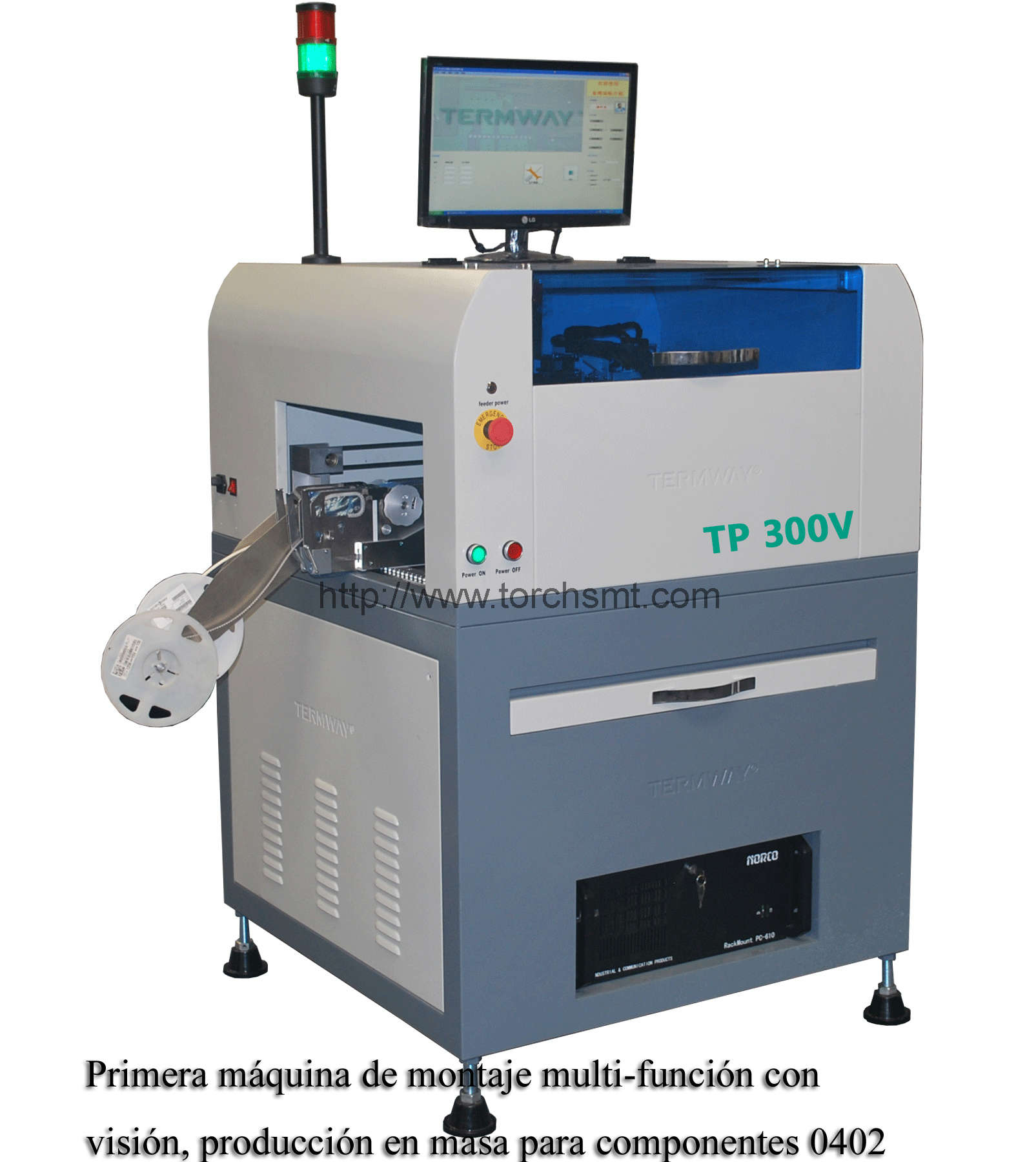

Automatic Mounter TP300V

Quantity:
TP series is a fully automatic desktop SMT placement machine, it can be mounted various of component through a vacuum nozzle, it is currently on the market cost-effective automatic placement equipment. The machine is suitable for most of the SMD chip components 0402, SOIC, PLCC and QFP IC; visional system meets high precision of 0.65mm pitch BGA or QFP IC chips such as the placement, in additional to the standard round reference point, no screen printing solder paste and square PCB and ring type through-hole pad also can be as a reference point.



TP300V Summary

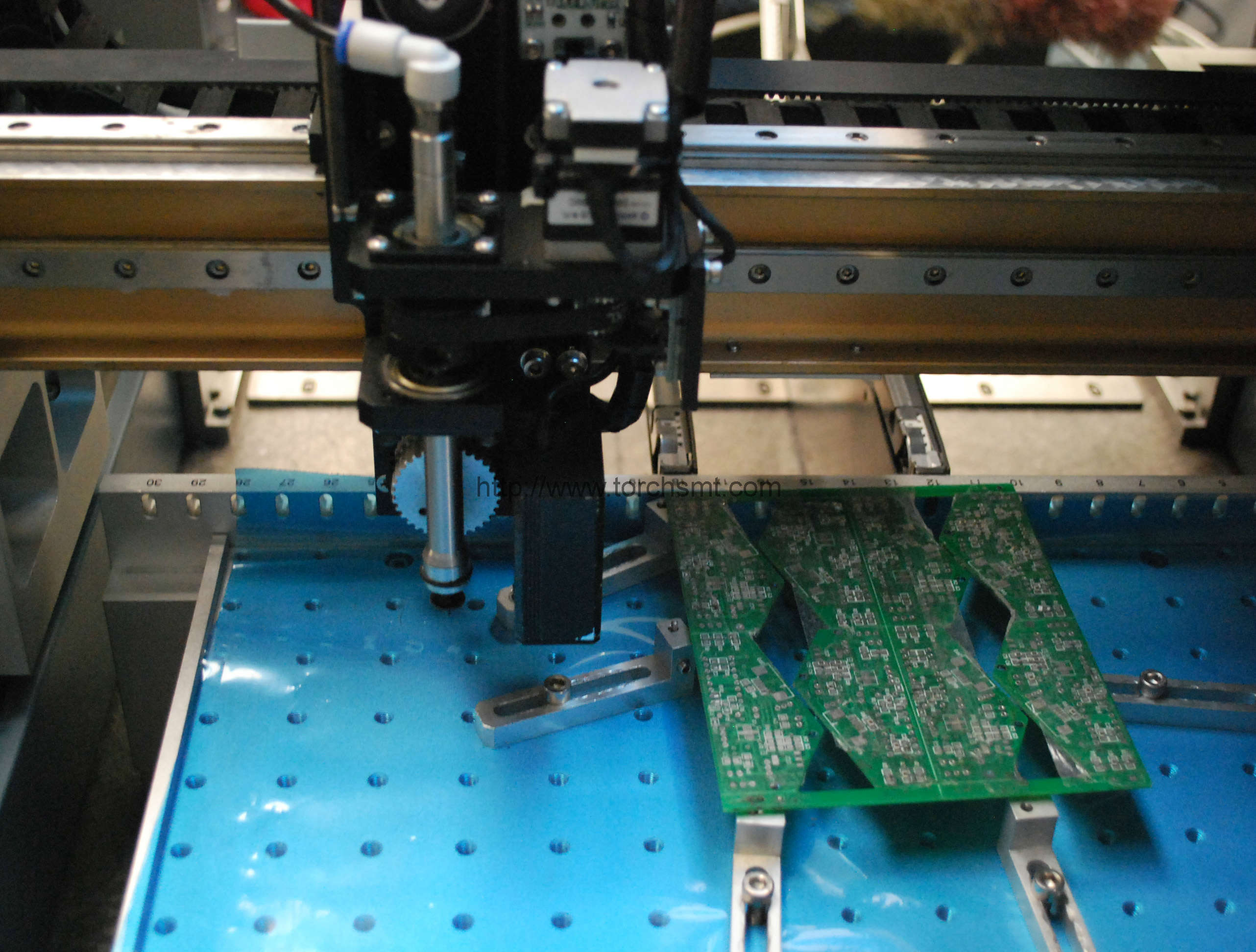

1. Desktop automatic mounter with precision spare parts
2. High precision machine after annealing treatment, high frequency oscillation and natural aging
3. Scraping movement planer makes the accuracy reach 0.01mm
4. Precision level P guide rail  ( repeatability of 0.02mm and good abrasion resistance
5. Patented mount model
6. Electric intelligent feeder
7. Chemical cromalin hardening process on PCB seat and feeder seat. (SMC spare part)
8. The only one desktop mounter that can place 50 types of component
9. Patented out-look design
10. Powerful data import function, any formats of PCB file can be imported. a new program can be finished in 10 minutes
11. Software control system for placement, can match famous brand Siemens
12. The desktop visional mounter with off- line program function
13. The one can realizes remotely maintain and analysis and inspection function
14. The one and only automatic desktop visional mounter for 0402 and 0.5mm QFP
15. Equips good quality industrial control computer
16. Equips Tunable optical generator to satisfy different colors for the identification of component
17. Silence, noise never go up to 50 db
18. Actual speed: 3000cph
19. Software reminds of maintainance period
20. LOGO is Stamp-formed

Features:

         1. Machine with marble platform, effectively ensuring the reliability and stability of long-term use Mounter.
2. it uses high precision guides to improve placement accuracy.

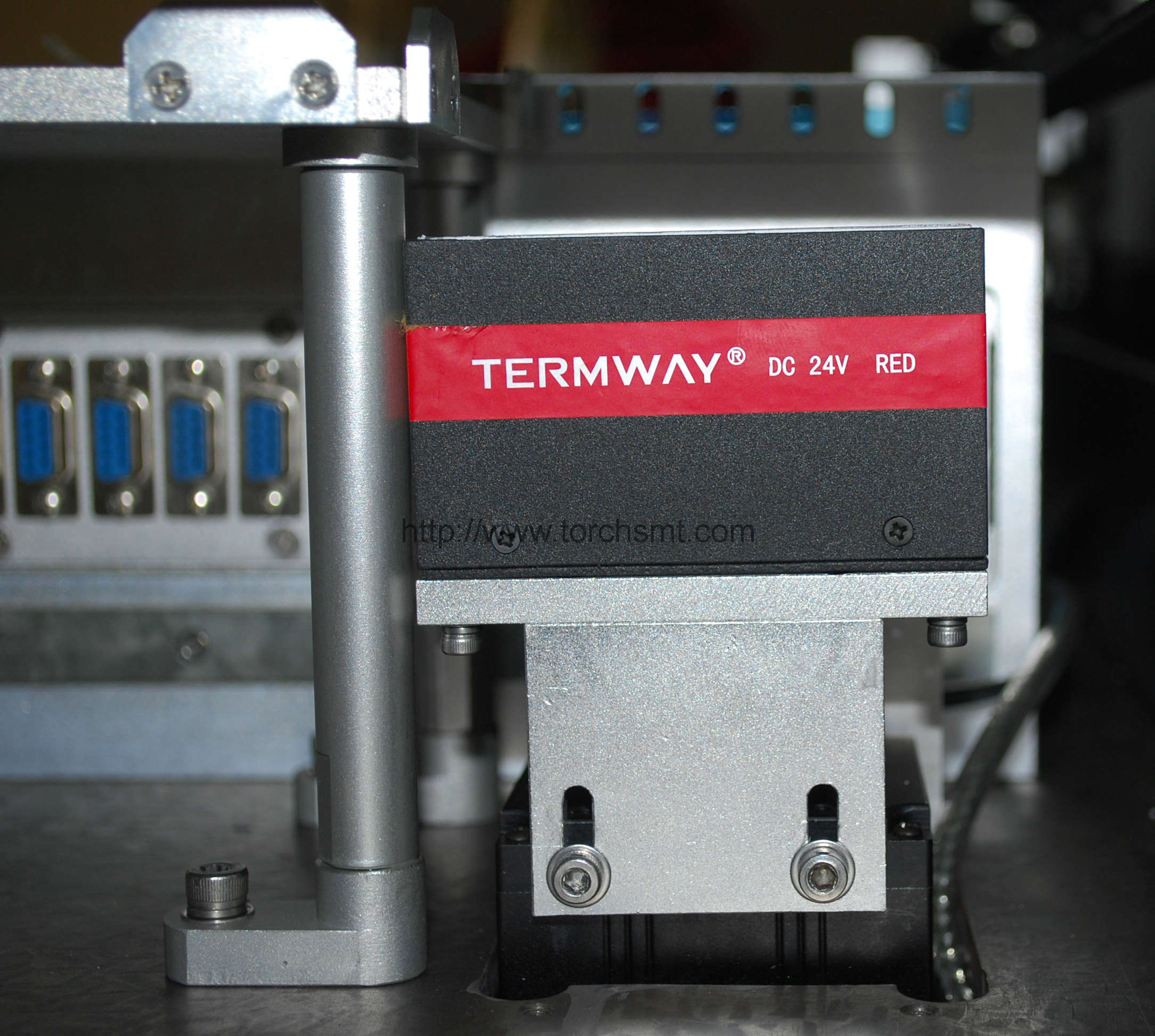

3. high-resolution industrial camera to complete the visual position mount of high-precision components.
4. vision system can automatically identify MARK point to improve production efficiency and chip placement accuracy.
5. Automatically visual programming without input device coordinates by hand. Programming is simple, easy for beginners to learn.
6. 5 nozzle as standard configuration, the software will remind you to replace the nozzle.
7. cost-effective automatic placement machine, it is most suitable for small scale production, research and personal use.

Optional:

1.GF electric feeder (CF type as alternative models suitable for low-cost production and R&D use)
2. A small IC tray as standard configuration

3. Nozzle

Technical Parameter

Model

TP300V

PCB board size

350×210mm

Max moving range

410×320mm

Max moving range of Z axis

10mm

Typical Mounting speed

2500-3000cph

Max mounting speed

3000 cph

Repeating accuracy

±0.06mm

Position

Visional Position

Component available

SMD capacitor and resistor 0402 and IC (below 20mm)

Programme

Automatic Data Import/Video study/ Keyboard input

Driving method

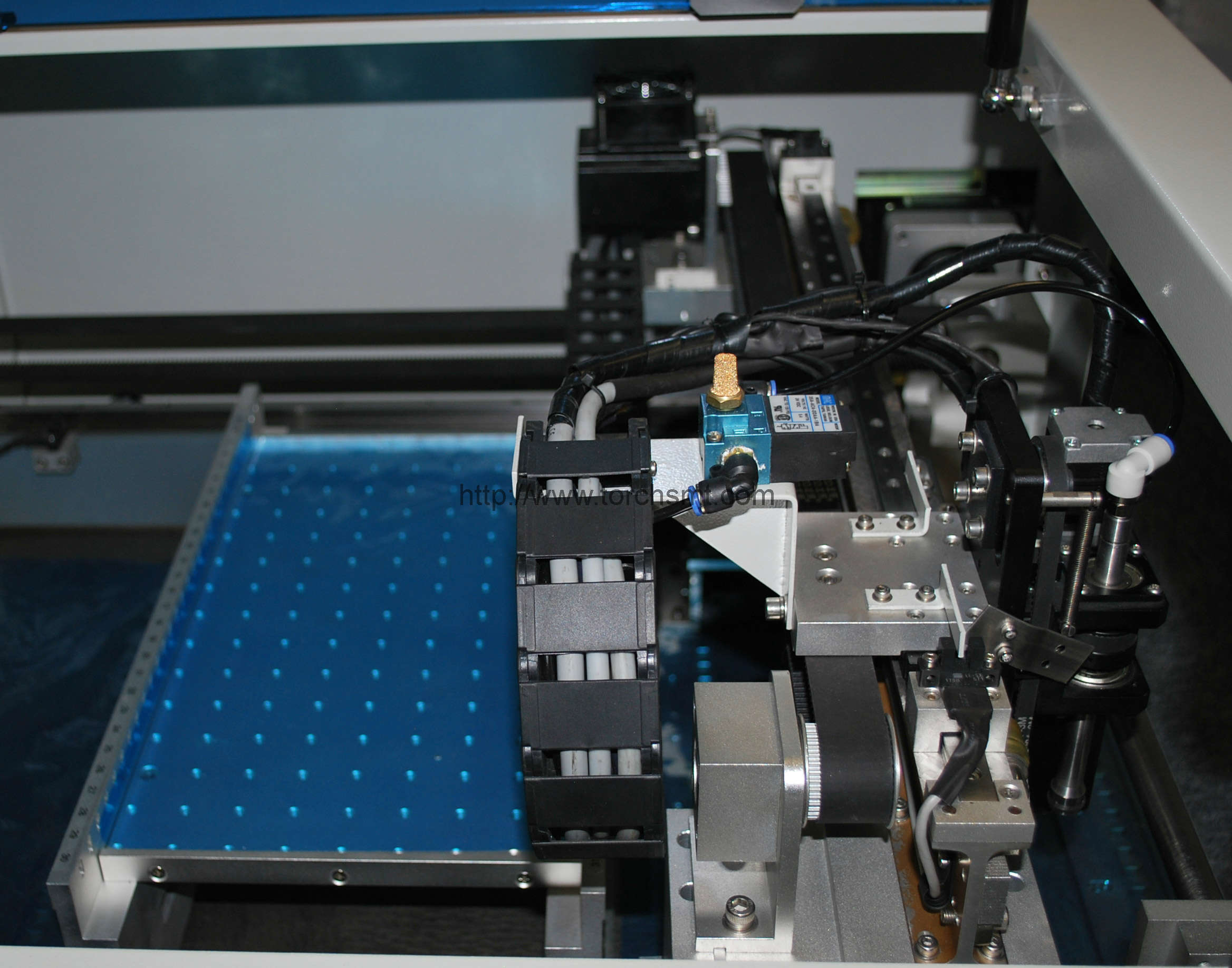

Use industrial synchronously driving belt

Belt feeder

Feeder 8mm,12mm,16mm,24mm optional

Feeder number

1、24 pcs of 8MM GFTA-08S at left side
2、22 pcs of 8MM GFTA-08S at right side(when no IC tray)

IC tray num

1 at most,in the situation, TP300V just can place 24 pcs of 8MM GFTA-08S feeder

Operation system

WINDOWS  XP

Compressed air

80psi(0.5Mpa),air flow 80L/M

Power supply

220v,50Hz,2kw

Weight

350kg

Dimension

875*925*1165mm



Dimensions two-dimensional map:

TP300Ver
