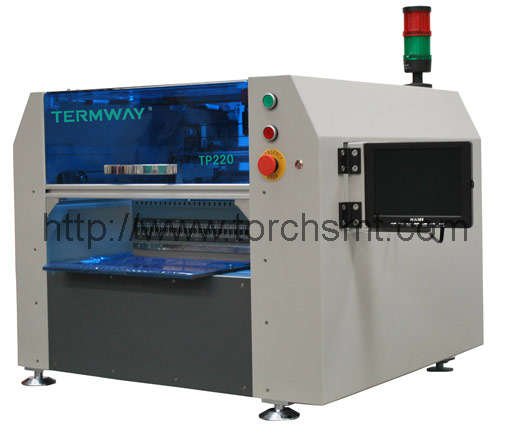

Automatic Pick and Place Machine TP220

Quantity:
Automatic pick and place machine TP220 is the most cost-performance equipment in the market, it mounts variety of components by vacuum nozzle. The machine can mount SMD components 0603 and above, SOIC ect; it can equip GF feeder, Z axis can rotate, which can meet various angle of SMD component.



TP220 Summary:
1. Component available for below 20mm SOP columnar  diode, triode, SOT, SOP, IC chips and and 0603 component ( except of 5m Aluminum electrolysis electric capacitor )  ect
2. Intelligent electrical feeder
3. Program and mounting technology for multi –panels
4. Off-line program function
5. Program control
6. Visional program
7. Powerful data import function, any formats of PCB file can be imported. a new program can be finished in 10 minutes
8. Stably pick and place SMD 0402
9. Security cover for protection of operator to dustproof
10. High precision linear guiderail
11. Configurate 5 kinds of nozzle, software reminds of "nozzle changing"


Product introduction:

Automatic pick and place machine TP220 is the most cost-performance equipment in the market, it mounts variety of components by vacuum nozzle. The machine can mount SMD components 0603 and above, SOIC ect; it can equip GF feeder, Z axis can rotate, which can meet various angle of SMD component.



Features:

1 With exact quadrate guide rail, it can improve picking accuracy.

2. it use visional programme system, which can help component programme position.

3. can import board CAD data as mouting data to realize automatic programme, which is no need to imput coordinate. Programme is simple for easy to learn for fresh man.

5. Nozzle can be changed by manual according to different size of component.

6. High cost-performance automatic mounter, it is suitable for small quantity of mass production, R&D and personal use, especially mini-type electronic mass production

7. Industrial computer cooperate with professional software control to use, which is convenient for operation.

8. Very stable and convenient for programme and mounting of panel boards.

9. In software will shows that all coordinates of panel boards, and micro-adjust for these coordinate to realize high precision mounting.



10. It can set space of each panel board in software, and display all feeding coordinates according to the space, can take out of panel boards that need not to mount.

11. If board manufacture has quality problem, it can deviate and improve all feeding place.

12. Software can help double heads to realize automatic optimization function.

13. It adds limit inspection function in software when XYZ axis moves.

14. It adds 6 gear speed control function in software, you can get the perfect speed according to distance check sheet and speed setting, which can improve mounter’s stability for a long term.

  Configuration:

  Industrial computer 1 suit

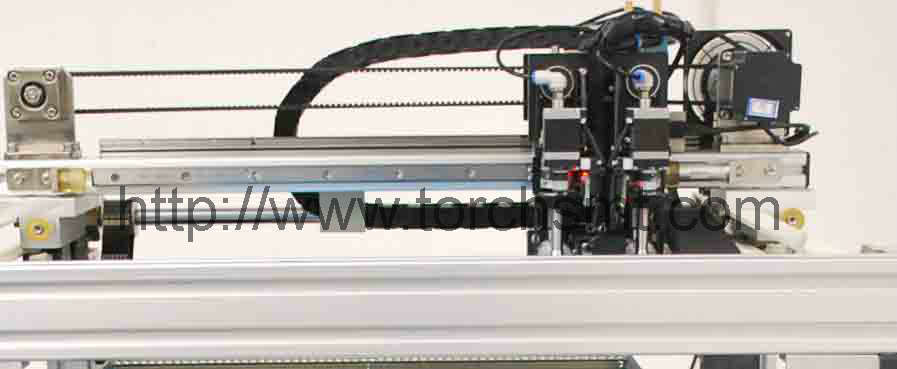

  Mounting head       2 group
  Nozzle              2 pcs

  Optional:

  1、8mm,12mm,16mm and 24mm automatic feeder
  2、Nozzle
  3、Industrial Pump
  4、UPS Uninterruptible power supply

  Technical Parameter





TP220(two heads)

max PCB size

300×200mm

max moving range

380×350mm

max moving range of Z axis

10mm

Typical picking speed

Max speed:4000CPH actual speed:2600-3500PH

Resolution

±0.015mm

Repeat accuracy

±0.15mm

Position method

Machinery position

Components can mount

0603 and above SMD component and  SOIC (below 15mm)

Programme method

Video programme /software program input

Riving method

Industrial  synchronous belt drive

Belt feeder

8mm,12mm GF type electric intelligent feeder (optional)

Feeder number

23 pcs of 8MM  GFTA-08S  electric  feeder can be set in front

Compressed air

80psi(0.5Mpa)

Power supply

220V,50Hz

Weight

126kg

Dimension

1000×1160×720mm
