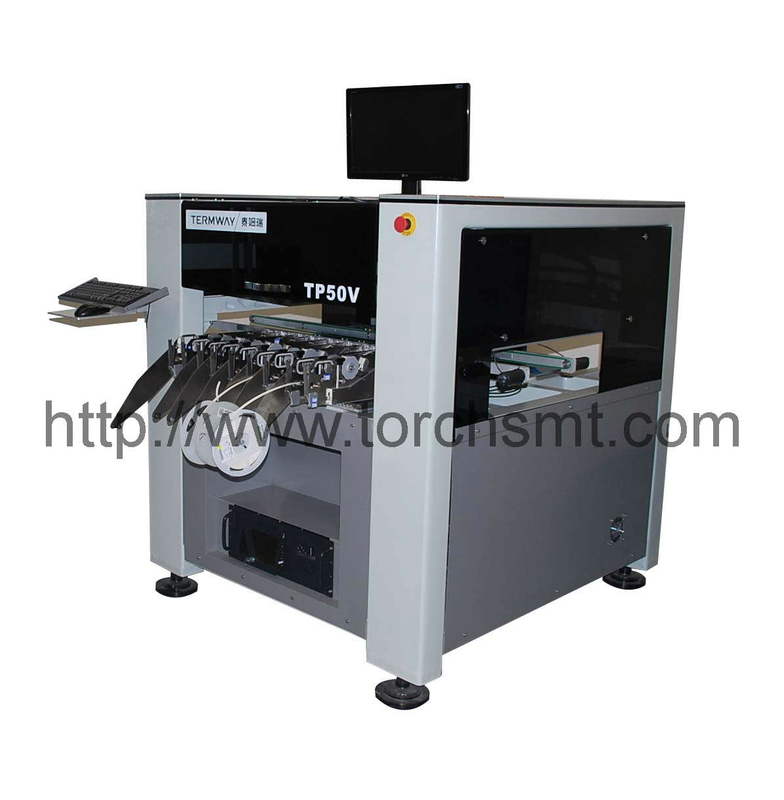

Automatic high precision pick and place machine TP50V-II

Quantity:
TP series is a fully automatic vision SMT pick and place machine, it can mount a variety of components through the vacuum nozzle can be mounted .it is the most cost effective automatic placement equipment on recently market.This machine is suit for most of the SMD components, such as 0402,SOIC,PLCC and QFP IC; With the vision position system, meet the needs of mounting high precision 0.5mm of QFP IC or BGA . Beside the standard circle reference point, the square ,which is not the PCB solder paste screen printing pad ring perforated pad, can also be as a reference point to know.



Remark

1.using imported precision square rail, effectively improve the placement accuracy.
   2. Using a unique high-definition optical prism industrial cameras to complete mount high-precision components.
   3. With the vision position system, can automatically identify the MARK point, ffectively improve SMT production efficiency and placement accuracy.
   4. automatic visional programming, it is no need to input the coordinates of components by manual, programming is simple, easy to learn for beginners and it is convenient and practical.
   5. Standard configuration of automatic nozzle replacement system.
   6. Cost-effective automatic placement machine, it is most suitable for mass production in middle scale and personal use.
   7. Standard configuration: 4 groups of optical vision registration system, 5 pcs of nozzle and a suit of 43 of 8mm feeder slots of feeder seat.
   8. Drive by servo motor with high precision ball screw to achieve, you can complete the duplication of highprecision components mount.
   9. Configure variety feeders to meet different mounting of mounting.
   10. Configure the special industrial computer with special software, easy to operate.
   11.Easy to input the CAD of the PCB。
   12. Can complete the program and mount the Circuit board puzzle stably and simplify.
   13. The software can display all the puzzle coordinates, and fine tuning some of the coordinates. To achieve highprecision placement
   14. You can set the spacing of each puzzle in the software, and display all the coordinates of discharging based on the distance, also can choose the puzzle no needing to mount in the puzzle.
   15. If the circuit board processing have quality problems, can leak location to improve the overall shift.
   16. The software can automatically optimize the function of head。
   17. Software adds multi-speed transmission features, you can find the best speed through check the moving table and set the speed, so that can increase the stability of the machine in long-time usage.
   18. With a high degree of automatic detection and alarm failed components picked up can effectively improve the production quality control.

Standard configuration

1、 Industrial computer 1 set
2、 Head 1set
3、 Nozzle 5pcs
4、 GFTA-48 feeder table 1set
5、 MARK camera 2sets
6、 QFP high precision industrial camera 1set
7、 QFP high clear light source 1set

Optional part

1、8mm,12mm,16mm and 24mm automatic feeder
2、IC Disc Feeder(GFQN)
3、Components bulk disk(GFSN)
4、nozzle
5、AQ38 end mirror system(25MM-38MM QFP)
6、industrial air pump



Technical Parameter

Max size of the PCB

600×300mm

Max size of the moving

670×620mm

Max range of z-axi moving

100mm

Speed of mounting

2000-3200cph

Expected max speed of mounting

4000cph

precision

±0.02mm

Position way

Vision position

component

Above 0402 and less than30mm pitch ,more than 0.5mm IC

program

Automatic data import / video learning / keyboard input

Transmission

XY-axis high precision ball screw with precision guide

Tape feeder

Optional 8mm,12mm,16mm,24mm feeder

Short with feeder

8mm,12mm,16mm,24mm feeder

Quantity of feeder

Can be put 96 pcs of 8MM GFTA-08S feeder,the front
and back can be put 48pcs

Quantity of IC dick

No more than 2 pcs

Operation system

WINDOWS XP

Compressed air

80psi(0.5Mpa),flue no more than100L/min

Power supply

220V,50Hz,3Kw

weight

620Kg

size

1405 × 1400 × 1450mm
