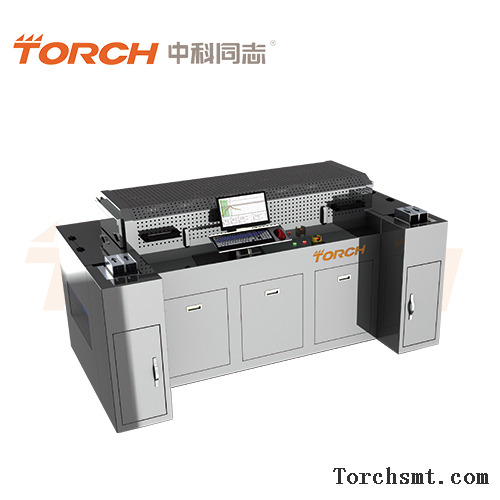

1. V8S/V8H online vacuum furnace has the characteristics of low vacuum, large output, low energy consumption, low nitrogen consumption, and small footprint.
V8S/V8H is specifically designed and optimized for the special requirements of vacuum soldering packaging of lead frame products, LED products, and power devices in the semiconductor industry. Considering the many problems encountered by current industry customers, a vacuum furnace has been carefully optimized and designed.
1). Large output: The hourly output can reach 120-130 frames/calculated based on the solderingg time of each greenhouse.
2). Low energy consumption: starting power of the whole machine: 18KW; average operating power of the whole machine: 6KW
3). Low nitrogen consumption: The nitrogen consumption is only 1/4-1/5 of other similar vacuum furnace products.
4). Small footprint: Dimensions: 3300 × 1000 × 1300mm.
Meet the solderingg requirements for various types of solder materials (≤ 450 ℃):
For example: SAC305 solder paste; Sn63Pb37 solder paste; Sn90Sb10 solder paste; In97Ag3 solder paste; In52Sn48 solder paste and various other component solder pastes.
V8S/V8H solderingg void rate: solder pad void rate:<2% Single void rate: 2% Different solderingg materials and atmospheres have an impact on solderingg, and the current data is based on comprehensive data obtained from customer testing. The data may vary for different solderingg products.
V8S/V8H supports a nitrogen atmosphere working environment to meet various solderingg processes.
V8S/V8H vacuum reflow soldering machine configuration software control system, modular design settings, simple and easy to understand operation interface.
The equipment does not require calibration and will not incur additional calibration costs.
