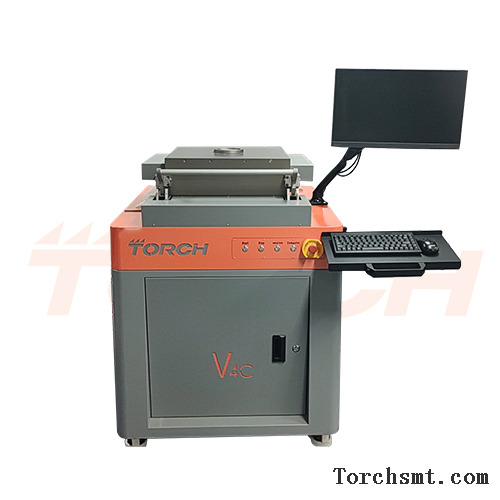

The V series vacuum reflow oven means a professional industrial grade vacuum welding furnace.
Why vacuum reflow oven is researched and developed? At present, industry are using soldering tools or equipment such as soldering iron, wave soldering and reflow soldering. the mainstream welding processes in the
Later, nitrogen protection was added and it is upgraded to nitr However, for some highly demanding welding fields, such as milit ogen lead-free reflow welding machines. ary products and industrial grade high
reliability products, even nitrogen protection cannot meet the High reliability welding needs for circuits such as material testing, chip packaging, power equipment, reliability requirements of the products.
automotive products, train control, aerospace and aviation syst or reduction in welding materials. ems, require voids and oxidation elimination
How to effectively reduce porosity and minimize oxidation of sol welding furnace is an ideal choice to achieve high welding quality. This is the most advanced technological der pads or component pins, a vacuum
innovation of SMT welding experts from countries such as Germany, Japan, and the United States.
Industry application: The V series vacuum reflow oven is an idea development, and production with low to high production capacit l choice for R&D, process research and y. It is the best choice for high-end research
and production in military enterprises, research institutes, universities and aerospace fields.
Application areas: Mainly used for defect free soldering of chi plates, and for perfect flux free soldering, such as IGBT packa ps and substrates, as well as shell and cover ging, solder paste process, laser diode
packaging process, hybrid integrated circuit packaging, shell a packaging nd cover plate packaging, MEMS and vacuum
The vacuum welding furnace has become an essential equipment fo countries such as Europe and America in military industry enterprises, aviation, aerospace and other fields, r high-end manufacturing in developed furthermore it has already been widely used in various fields such as chip packaging and electronic soldering .
1、Welding in a true vacuum environment. The highest vacuum degree is 1Pa (The highest vacuum can reach 10 ˉ 4 Pa if molecular pump is configured.)
2、Capable of soldering with or without flux
3、Industrial grade computers combined with professional software control achieve a perfect operating experience.
4、A programmable temperature control system with up to 40 stages in the industry, is capable of setting the most perfect process curve.
5、Circulating water cooling technology achieves rapid cooling effects.
6、2 sets of online temperature measurement systems can accurately measure temperature uniformity in the welding area. Provide expert level support for process tuning.
7、Supports working environments with a mixture of formic acid, nitrogen, and nitrogen hydrogen (95% nitrogen, optional) to meet various welding processes.
8、The maximum temperature is 450 ℃ (higher is optional), which meets all the requirements of the brazing process.
9、The top cover of the furnace chamber is equipped with a visual monitoring window, which can be used to observe and record the welding process in detail through a microscope.
10、The equipment does not require calibration and will not incur additional calibration costs.
